Yealink MVC S90 Microsoft Teams Room System for Extra-Large Conference Rooms

Yealink MVC S90 is specially designed for extra-large conference rooms. This set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink’s exclusive multi-camera solution, which can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with voice incentive mechanism functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms. The MVC S90 set comes standard with two UVC86 cameras, which can support 12x optical zoom-in and intelligent follow-up shooting. On the MTouch Plus control panel, through Yealink RoomConnect, the cameras can be controlled independently and switch layouts. You can combine the MVC S90 with the MVC-BYOD-Extender, you only need to plug the USB cable into the PC to freely use the audio and video equipment of the entire system, and you can convert the Microsoft Teams meeting room into a multi-functional meeting room. In addition, multiple sets of MVC S90 series products can be combined through a network cable to build a conference room system that can be flexibly merged and divided.

Core Features:

• Multiple Cameras
• Camera Layout Adjustment
• Device Management
• Multi-Screen Control
• Divisible Conference Room
• Third-party DSP
• Multi-camera intelliframe
• Microsoft Teams Rooms

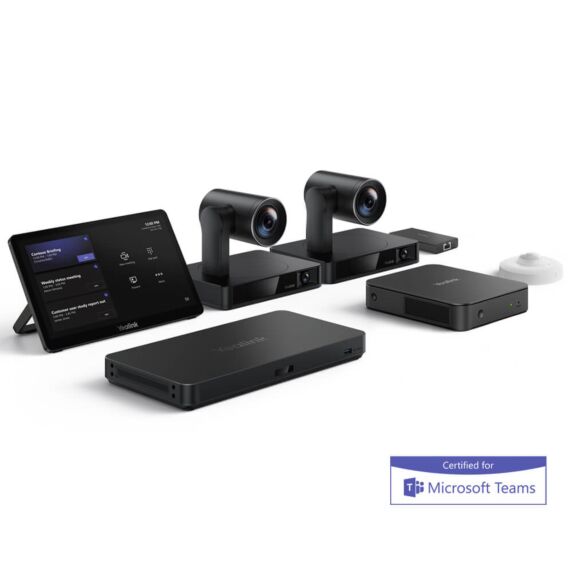

Package Contents:

• 2x UVC86 dual-eye Intellient camera, VCR20 remote control, power adapter，wallmount bracket and cables
• Yealink MCoreKit-C5 (with MCore Pro mini-PC, MTouch Plus and RoomSensor), power adapter, cables and wall braket
• 1x AVHub multi-camera processor, power adapter and cables
• 1x MVC-BYOD-Extender USB-BYOD adapter
• The mini-PC computer preloads Windows 11 IoT Enterprise OS and license, Microsoft Teams Rooms App, as well as Yealink Camera Control Plug-in
• No audio devices

Preload:

• Windows 11 IoT Enterprise X64
• Windows 11 IoT Enterprise License
• Microsoft Rooms App
• Yeallink RoomConnect
  *Windows 11 will be supported in 23H2

MCore Pro, Gen-3 Mini-PC:

• 11th Gen Intel® Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management

MTouch Plus:

• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)
• Support wired and wireless (with WPP30) content sharing
• Support multi-screen control*
• Support third-party screen sharing*
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment
  *This feature will be supported in future versions

RoomSensor:

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
• Power: Battery powered, 4-year life

AVHub, audio and video processor:

• 2 x USB-A port
• 1 x USB-B port
• 1 x Codec port
• 7 x Yealink VCH port(RJ-45)
• 1 x RCA in/out interface
• 1 x 6.3mm Line in interface
• 1 x 6.3mm Line out interface
• 1 x power interface
• Dividable and merging meeting rooms are supported
• Support intelligent multi-speaker tracking

UVC86 USB PTZ Camera:

• 4K Sensor
• 20.4 × HD zoom (12x optical, 1.7x digital)
• Angle of view:
  • 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens)
  • 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
• Auto-framing
• Speaker tracking
• Presenter tracking, support area trigger and gesture control
• Multi-focus
• Picture-in-picture
• Up to 9 preset positions can be set
• Horizontal rotation: 200°
• Vertical rotation: 130°
• 1 x HDMI output
• 1 x Yealink microphone port(RJ-45)
• 1 x USB 3.0 Type-B port
• 1 x USB 2.0 Type-A Port
• 1 x Power Port
• 1 x Security Lock
• 1 x Reset Hole

Package Features:

• N.W/CTN: 12.1 kg
• G.W/CTN: 13.8 kg
• Carton Meas: 935mm x 413mm x 312mm
