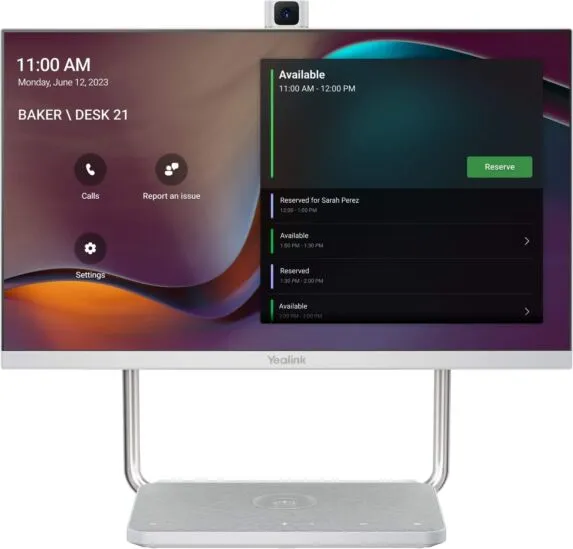

Yealink DeskVision A24 Desktop Collaboration interactive Display

All-in-one desktop collaboration solution for hybrid office.Yealink DeskVision A24 is a desktop collaboration solution launched by Yealink for video conferencing that integrates PC monitors and UC audio and video endpoint applications. It can be used as an independent video conferencing endpoint or desktop monitor.

Screen

• Dimensions: 23.8 inch
• Resolution: 1920 x 1080
• Refresh Rate: 60 Hz
• Color Depth: 8 bit
• Contrast Ratio: 1000:1
• Viewing Angle:
• Horizontal: 178°
• Pitch: 178°
• Multi-touch: 10 points

Camera

• 4K Camera
• Camera FOV: 83°
• Video Specifications: Up to 1080p30

Video Call

• Privacy Protection: Automatically lifted or manually controlled lift

Audio

• Microphone Type: Built-in Dual Microphones
• Intelligent Noise Cancellation Technology
• Speaker: Built-in Stereo Speaker
• Speaker Power: 2*3W
• Speaker frequency response: 100MHZ-16KHZ

Application Mode

• Dual Mode:
• Built-in Android
• UC Workstation mode
• Android System: Android 10.0

Wireless capability

• Wi-Fi: supports 2.4G / 5G dual-mode Wi-Fi
• Bluetooth: Support Bluetooth 4.2

Physical interface

• 1 x HDMI in port
• 1 x USB-C 3.0 upstream DP-IN port: provide PD up to 45 w
• 1 x USB-C 3.0 downstream port, connect to peripherals. Only applicable for PCs connected to the USB-C upstream port.
• 2 x USB-A 3.0 downstream port, connect to peripherals.
• 1x USB-A 2.0 downstream port, connect to headphones.
• 1 x DC 19V port
• 1 x Internet (RJ-45) port
• Qi Wireless Charging
• Buttons: Power, Volume, Mute, Camera on/off, Switch Mode, Teams Button

Physical Features

• N.W/CTN: 7.904 kg
• G.W/CTN: 9.346 kg
• Carton Meas (mm): 622*375*197
• Dimension (W.D.H)(mm): 540*219*478
• Power consumption: 19w
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
• Storage temperature: -30-70℃
