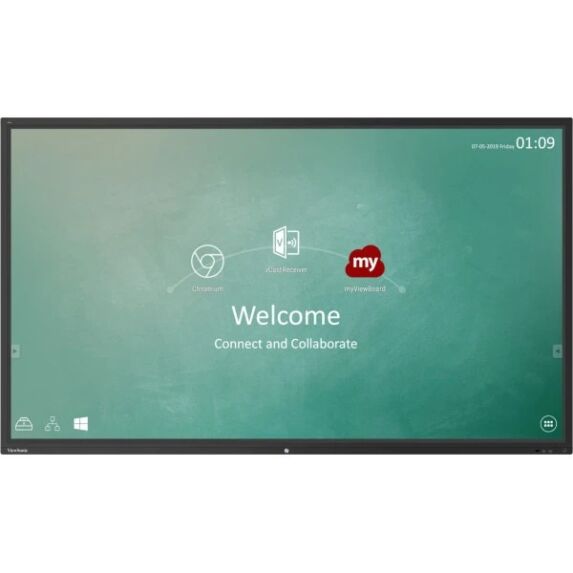

The ViewBoard® IFP50 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. Smooth, dual-pen writing with our new, slim 2.5mm pens enables groups of teachers and students to work efficiently on any detailed tasks that require the use of accurate, fine tipped pens. The ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience so that even at the edge you can write clearly and confidently. Integrated myViewBoard™ digital whiteboarding software allows users to collaborate on the go, while ViewBoard® Cast provides 4-way, split screen content sharing.
Dual-Pen
Automatically detect pen diameter (8mm & 2.5mm) and write simultaneously with different colours and thicknesses.
Full Native Performance on embedded OS
Built-in myViewBoard™ digital whiteboarding software to collaborate on the go.
4-way Split Screen
4-way split screen content sharing with built-in ViewBoard® Cast software
Shared USB Ports
SmartPort™ shared front USB ports for internal & external PCs.
Stereo Sound
2.0 Stereo sound
Faster Internet
GigaLAN provides a faster, more powerful internet connection.
Remote Control
Built-in RS232 port and vController software for remote control.
Display Specifications
Feature
Details
Panel Size
98"
Type/Tech
TFT LCD Module with DLED Backlight
Display Area (mm)
2171.85(H) x 1232.35(V) (97.52” diagonal)
Aspect Ratio
16:9
Native Resolution
UHD 3840x2160 (Pixels)
Colors
1.07B colors (10bit)
Brightness
400 nits (typ.)
Contrast Ratio
30,000:1 (Dynamic)
Response Time
6ms
Viewing Angles
H = 178°, V = 178° typ.
Backlight Life
50,000 Hours (Min)
Surface Treatment
Anti-Glare
Orientation
Landscape
Shell Materials
Metal Shell + Aluminum Alloy Frame + Toughened Glass
Surface
Metal Case with Powder Burning; Tempered Glass
Platform
Feature
Details
Processor
ARM Cortex A732 (1.5GHz) + A532 (1.2GHz)
RAM
3GB DDR4
Storage
16GB
Touch
Feature
Details
Type/Tech
IR Recognition
Touch Resolution
32767 x 32767
Touch Points
20 points touch, 10 points writing
Transparency Ratio
Min >97%
Inputs & Outputs
Input
Feature
Details
HDMI
3x HDMI 2.0 (3840x2160 @60Hz)
RGB / VGA
1x VGA
Audio
1x PC Audio In
RS232
1x RS232
OPS
1x PC Slot
Output
Feature
Details
HDMI
1x HDMI
Audio
1x Earphone Out
SPDIF
1x Optical
RS232
1x RS232
LAN
1x RJ45
USB Ports
Feature
Details
USB Type A
3x USB 2.0, 3x USB 3.0
USB Type B
2x for Touch
Speakers & Microphone
Feature
Details
Speakers
12W x 2
Microphone
Camera plate on top for screw-in webcam installation
