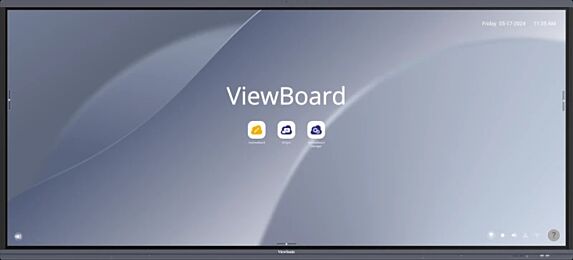

ViewSonic ViewBoard® 92" 5K Interactive Display IFP92UW
ViewSonic ViewBoard® 92" 5K Interactive Display IFP92UW
The ViewBoard® IFP92UW delivers an expansive interactive experience with its 21:9 aspect ratio, optimized for Microsoft Teams Rooms and Front Row mode, and stunning 5K resolution. This ultrawide 92” display facilitates multitasking with split-screen functionality, enhancing collaboration and productivity in team huddles, meetings, and brainstorming sessions. It boasts highly responsive 50-point touch capabilities that capture every input naturally and intuitively, offering pen-on-paper precision, complemented by seamless wireless screen casting through vCast. Additionally, an 8-microphone array and 60W soundbar ensure optimal audio clarity for both in-room and remote participants.
More Space for Enhanced Collaboration
Offering 33% more screen space than a conventional 16:9 display of the same size, the 21:9 aspect ratio of the ViewBoard IFP92UW enhances multitasking and collaboration by enabling users to view more tools, documents, and information simultaneously during meetings.
Superior Detail, Flawless Visibility
Featuring 5K resolution, the ViewBoard IFP92UW delivers unparalleled image sharpness and detail, complemented by a 178-degree viewing angle that guarantees flawless visibility across the entire room.
| Section | Details |
|---|---|
| Display | |
| Panel Size | 92" |
| Panel Type | TFT LCD Module with DLED Backlight, VA |
| Display Area (mm) | 2141.952(H) × 903.636(V) (91.52” diagonal) |
| Aspect Ratio | 21:9 |
| Resolution | WUHD 5120x2160(Pixels) |
| Colors | 1.07B colors (8bits + 2bits FRC) |
| Brightness | 500 nits (Typ.) |
| Contrast Ratio | 5000:1 (typ.) |
| Response Time | <6.5ms |
| Viewing Angles | H = 178, V = 178 (Typ.) |
| Backlight Life | 50,000hrs (typ.) |
| Surface Treatment | Panel Hard Coating 3H, Glass Anti-Glare + Anti-Fingerprint (7H Mohs; 9H pencil hardness) |
| Bezel | 19.48/19.48/29.78/41.18 mm |
| Orientation | Landscape |
| Platform | |
| Processor | RK3588 Octa-Core CPU (A764 + A554) |
| RAM | DDR4 8GB |
| Storage | 128GB eMMC |
| Touch | |
| Type/Tech | IR Recognition |
| Touch Resolution | 32767 x 32767 |
| Touch Point | Windows: 50, Android and all other channels: 32 |
| Input | |
| HDMI | Rear x4 (HDMI 2.1 x 1, HDMI 2.0 x 3) |
| DisplayPort | 1 |
| Audio | 1 |
| RS232 | 1 |
| OPS | 1 (OPS Slot 80pin) |
| WiFi | 1 (Module Slot) |
| Output | |
| HDMI | 1 |
| Audio | 1 |
| SPDIF | 1 |
| LAN | RJ45: 1 in 1 out (Android & PC 10M/100M/1000Mbps) |
| USB | |
| Type A | REAR x 1 (USB 2.0 support OTG), REAR x 2 (USB 3.2 Gen 1), FRONT x 2 (USB 3.2 Gen 1), TOP x 2 (USB 3.2 Gen 1) |
| Type B | REAR x 3 (USB 2.0) |
| Type C | FRONT x 1 (PD15W + DP1.2 + Data + 10M/100M sharing), REAR x 1 (PD65W + DP1.2 + Data + 10M/100M sharing) |
| Speakers | |
| Speaker Output | 20W x 2 + 20W x 1 (Subwoofer) |
| Microphone | Built-in 8 Array Microphone |
| Compatibility | |
| HDMI | HDMI 1: 5120x2160 @60Hz (YUV444), 5120x2160 @30Hz (YUV420); HDMI 2/3/4: 3840x2160 @60Hz |
| DisplayPort | 5120x2160 |
| Embedded OS | Android 13 |
| Bundle Software | Basic Annotation Software: myViewBoard Whiteboard for Android, Pro Annotation Software: myViewBoard Whiteboard for Windows (embedded in VPC) |
| Wireless Presentation | myViewBoard Display, vCast, AirSync (AirSync will replace myViewBoard Display in Q1 2025) |
| Device Management | ViewSonic® Manager |
| ViewSonic Launcher | Yes |
| Special Features | |
| USB Port | USB 3.2 Gen 1 “SmartPort USB” to all channels |
| LAN Sharing | 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000) |
| Light Sensor | Yes |
| Power | |
| Voltage | 100-240VAC +/- 10% Wide Range |
| Consumption (On) | 151.24W (Energy Star) |
| Consumption (Off) | <0.5W |
| Ergonomics | |
| Wall Mount (VESA®) | 800 x 600 |
| Operating Conditions | |
| Temperature (ºC) | 0°C to 40°C |
| Humidity | 20% ~ 80% RH non-condensing |
| Dimensions (W x H x D) | |
| Physical (inch/mm) | 86.73 x 39.37 x 3.62 in / 2203 x 1000 x 92 mm |
| Packaging (inch/mm) | 92.52 x 44.72 x 8.5 in / 2350 x 1136 x 216 mm |
| Weight | |
| Net (lb/kg) | 147.7 lb / 67 kg |
| Gross (lb/kg) | 183 lb / 83 kg |
| Regulations | cTUVus, FCC/ICES003, CE/EMC, CB/LVD, EAC, UkrSEPRO, UKCA, UK-EEL, LBL, FF, ErP-EEL, Green BOM, RoHS DoC, ErP-Eco, REACH DoC, SCIP, WEEE, EPEAT |
| Package Contents | 1. 3m power cord by ship area, 2. Type C cable 1.8m (USB-IF certified), 3. Remote control with AAA battery x 2, 4. 3m touch USB cable (USB 2.0), etc. |
| Compatible Slot-in PC | VPC3X series, VPCF5-2A |
| SKU | IFP92UW |
|---|---|
| Brands | ViewSonic |
| Color | Black |
| Screen Size | 98" |
| Aspect Ratio | 21:9 |
| Brightness | 500 Nits |
| Contrast Ratio | 5000 : 1 |
| Built-in PC | Yes |
| Weight | 67.000000 |
