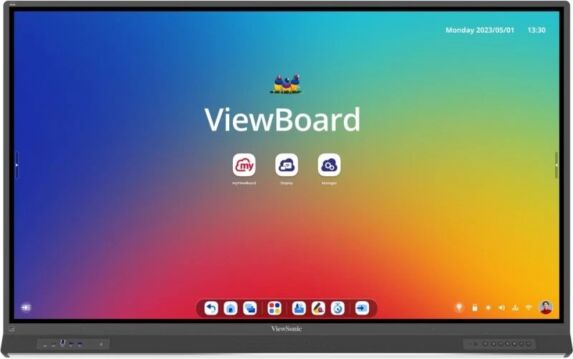

ViewSonic ViewBoard® 86" 4K Interactive Display
Discover the future of interactive learning with the dynamic ViewBoard® IFP53 Series. Enhancing convenience, its SSO and NFC card sign-in functions provide quick access to personalized launchers and cloud storage. With quick-start annotation and the ability to rapidly switch between four colors, you can capture thoughts the moment inspiration strikes. Equipped with Android 14, it features a powerful high-performance octa-core processor complemented by 8GB RAM and 8GB virtual memory, ensuring seamless connectivity and uninterrupted productivity. The integrated ViewSonic Education Software completes the experience, fostering collaboration and engagement in classrooms with interactive digital tools designed to maximize students' potential.
One-tap Access
Striking the perfect balance between ease of use and security, the IFP53 offers hassle-free sign-in with a simple tap of an NFC card to swiftly access the intuitive interface. For guests, the convenient Guest Login feature enables rapid and effortless access without compromising sensitive data and settings.
Always in Sync
Access your ViewBoard through your myViewBoard account or the convenient SSO options for instant access to your cloud-stored files, personalized app settings, and saved bookmarks. With this streamlined cloud integration, your lessons can flow smoothly, free from the hassle of juggling multiple login credentials.
Write Away Effortlessly
Write smoothly, sketch with precision, and annotate with ease directly on the ViewBoard from the moment you pick up the stylus. The IFP53 Series offers a quick-start writing experience that feels as natural and immediate as putting pen to paper. Simply grab your stylus and let your thoughts flow.
Capture Every Colorful Thought
Swap colors with a simple click of the optional VB-PEN-010 stylus to transform simple annotations into vibrant expressions. Whether you're highlighting key concepts, adding colorful notes, or sketching out ideas, the VB-PEN-010 stylus ensures you get your message across.
Power Through Your Day
Boasting a high-performance octa-core CPU and 8GB of local RAM enhanced by an additional 8GB of virtual memory, the IFP53 Series excels in multitasking. Beyond delivering seamless operation across demanding applications, the IFP53 Series comes equipped with the Android 14, keeping you ahead of the curve with the latest advancements in efficiency, features, and security.
Display
| Property | Details |
|---|
| Panel Size | 86" |
| Panel Type | TFT LCD Module with DLED Backlight |
| Display Area (mm) | 1895.04(H) x 1065.96(V) (86.5" diagonal) |
| Aspect Ratio | 16:9 |
| Resolution | UHD 3840x2160(Pixels) |
| Colors | 1.07B colors |
| Brightness | 450 nits (typ) |
| Contrast Ratio | 1200:1 (typ.), 5000:1 (DCR enabled) |
| Response Time | 8 ms |
| Viewing Angles | H = 178, V = 178 (typ.) |
| Backlight Life | 50,000 hrs (typ.) |
| Surface Treatment | Hardness: 7H, Anti-glare coating |
| Orientation | Landscape |
Platform
| Property | Details |
|---|
| Processor | Octa-Core CPU (A734 + A534) |
| RAM | 8GB (Physical RAM) + 8GB (Virtual RAM) |
| Storage | 128GB |
Touch
| Property | Details |
|---|
| Type/Tech | UFT (Ultra Fine Touch) Technology |
| Touch Resolution | 32767 x 32767 |
| Touch Points | Windows: 40 points touch, Android: 20 points touch |
Input
| Property | Details |
|---|
| HDMI | x4 (Frontx1: HDMI2.1 with CEC; Rearx3: (HDMI2.1 with CEC)x2 & (HDMI2.1 with CEC, ARC)x1) |
| RGB / VGA | x1 |
| DisplayPort | x1 |
| Audio | x1 (PC audio in) |
| RS232 | x1 |
| OPS | module slot x1 |
Output
| Property | Details |
|---|
| HDMI | x1 (4K@60Hz) |
| Audio | x1 (Earphone out) |
| SPDIF | x1 (optical) |
LAN
USB
| Property | Details |
|---|
| Type A | USB3.0 x4 (Frontx2; Rearx2), USB2.0 x1 (Rear) |
| Type B | USB3.0 x3 (Frontx1; Rearx2) |
| Type C | Input: x3 (Frontx1 with USB3.0, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.0, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.0, PD 15W)
Output: x1, DP |
Speakers
| Property | Details |
|---|
| Speakers | 16W x 2 front soundbar + 20W x 1 subwoofer |
Microphone
| Property | Details |
|---|
| Microphone | built-in 8-array microphone |
Embedded OS
| Property | Details |
|---|
| OS | Android 14 |
Bundle Software
| Property | Details |
|---|
| Basic Annotation Software | myViewBoard for Android |
| Pro Annotation Software | myViewBoard for Windows (embedded in VPC) |
| Wireless Presentation | Display, vCast |
| Device Management | Manager |
| ViewSonic Launcher | Yes |
Special Features
| Property | Details |
|---|
| All-in-one USB port | USB 3.0 “SmartPort USB” to all channels |
| Simple LAN sharing | Simple LAN sharing between IFP and slot-in device |
| Light Sensor | Yes |
| NFC Reader | Yes |
| Pen Sensor | Yes |
Power
| Property | Details |
|---|
| Voltage | 100-240VAC +/- 10% Wide Range |
| Consumption | On: 131.53W / Off: <0.5W |
Ergonomics
| Property | Details |
|---|
| Wall Mount (VESA®) | 800 x 600 |
Operating Conditions
| Property | Details |
|---|
| Temperature (ºC) | 0°C to 40°C |
| Humidity | 20% ~ 80% RH non-condensing |
Dimensions
| Property | Details |
|---|
| Physical (inch/mm) | 76.87 x 47.13 x 4.66 in / 1952.4 x 1197.2 x 118.4 mm |
| Packaging (inch/mm) | 85.04 x 51.17 x 8.86 in / 2160 x 1310 x 225 mm |
Weight
| Property | Details |
|---|
| Net (lb/kg) | 139.66 lb / 63.35 kg |
| Gross (lb/kg) | 179.01 lb / 81.2 kg |
Regulations
| Property | Details |
|---|
| Certifications | DOE EPEAT, DOE Energy Star, CE EMC, LVD or CB, RoHS, Green BOM & RoHS DoC, ErP (2009/125/EC), REACH, WEEE, BSMI, Green Mark |
Package Contents
| Item | Details |
|---|
| Power Cord | 3m (by ship area) |
| Type C Cable | 1.8m (USB-IF certified) |
| Remote Control with AAA Battery | Yes |
| Touch USB Cable | 3m (USB 2.0) |
| Touch Pen | x2 (VB-PEN-002) |
| Quick Start Guide | Yes |
| RS232 Adapter | Yes |
| Clamp | x5 |
| Camera Plate | Yes |
| Screw | x8 (camera 2+2, wall mount 4) |
| HDMI Cable | 3m (HDMI LA certified) |
| AAA Battery | x2 |
| Compliance Statement | Yes |
Compatible Slot-in PC
| Compatible Slot-in PC |
|---|
| VPCF5-W33-G1 |
| VPC37-W53-G1 |
| VPC35-W53-G1 |
| VPC-A31-O1 |
Note
| Note | Details |
|---|
| Virtual RAM Usage Disclaimer | The Virtual RAM uses part of the internal storage to potentially enhance performance. It is not a substitute for physical RAM and might impact storage availability and device longevity. Performance outcomes can vary based on usage and device conditions. The manufacturer may modify or discontinue this feature at any time. |
