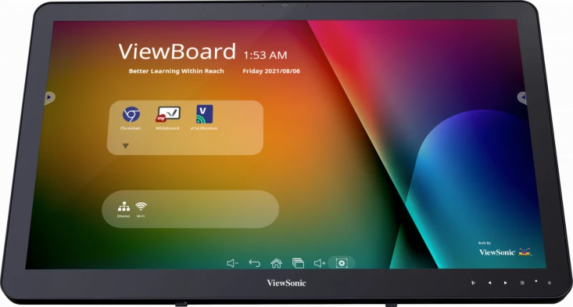

ViewSonic ViewBoard Mini IFP2410

In stock
SKU
IFP2410
ViewSonic
Quick Overview
  • Interactive front-facing teaching and collaboration
  • Built-in myViewBoard® digital whiteboarding software
  • Built-in ViewBoard® Cast streaming software
AED 2,799

ViewSonic ViewBoard Mini IFP2410

OVERVIEW

The ViewBoard® Mini IFP2410 is a 24" interactive display that transforms podiums and lecterns into collaboration hubs for front-facing teaching. With integrated myViewBoard® digital whiteboarding software, ViewBoard® Cast streaming software, and a 10-point touchscreen, the ViewBoard® Mini makes content creation and sharing easier than ever before. Educators can manipulate and control content, files, images, and annotations on the ViewBoard® Mini touchscreen, then share that content on a larger front-of-classroom display or projector. For dynamic lessons and interactive collaboration, multiple presenters can simultaneously draw, write, and annotate on the ViewBoard® Mini as well - making it an ideal collaboration hub for classrooms, lecture halls, and auditoriums.

Interactive front-facing teaching and collaboration

The ViewBoard® Mini touchscreen provides a front-facing interactive display solution, allowing educators to face the audience while annotating on slides – all done without turning your back on the audience. Not only that, but it also allows the presenter to be in full control of the presentation, creates interaction, and eye contact with the audience for total engagement.

Built-in myViewBoard® digital whiteboarding software

myViewBoard® digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way you connect and collaborate. Convenient features include multimedia support, screen recording, easy conversion of common office files, QR code sharing, and much more.


Built-in ViewBoard® Cast streaming software

ViewBoard® Cast allows you to share content on a projection screen, meaning that all content on the ViewBoard® Mini IFP2410 interactive display including annotations can be transferred directly onto a projection screen via ViewBoard® Cast for better visibility and long distance installation.
  1. Menu Controls
  2. VESA Compatible (Wall Mount 100 x 100 mm)
  3. LAN
  4. HDMI/MHL In/Out
  5. Audio In
  6. Headphone
  7. SD Card Reader
  8. Mini USB
  9. DC Power In
  10. USB 2.0 x 4
  11. USB Type-B
  12. Internal Speakers



Display

FeatureSpecification
Panel Size23.6"
Panel TypeIPS
Aspect Ratio16:9
Resolution1920 x 1080
Brightness250 nits (typ.)
Contrast Ratio3000:1 Typ.
Viewing AnglesH = 178°, V = 178° typ.
Backlight Life40,000 Hours Typ.
OrientationLandscape

Platform

FeatureSpecification
ProcessorARM-based SoC
RAM2GB DDR3
Storage16GB EMMC iNand

Touch

FeatureSpecification
Type/ TechPCAP Touch Technology
Touch Points10 points touch, 10 points writing

Input

FeatureSpecification
HDMIx1
Audiox1 PC audio (3.5 mm)
SD/SDHCYes

Output

FeatureSpecification
HDMIx1

LAN

FeatureSpecification
RJ45x1

USB

FeatureSpecification
Type AUSB 2.0 x4
Type Bx1 for touch
Mini USBx1 (for OTG)

Webcam

FeatureSpecification
Webcamx1, 5 MP

Microphone

FeatureSpecification
Microphonex1, Echo Cancelling

Compatibility

FeatureSpecification
HDMI480i, 480p, 720p, 1080i, 1080p

Embedded OS

FeatureSpecification
OSAndroid 8.1

Bundle Software

FeatureSpecification
Basic Annotation SoftwaremyViewBoard for Android
Wireless Presentation with Touch FeedbackViewboard Cast: vCastReceiver

Power

FeatureSpecification
Voltage100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption35W (typ), 40W (max), < 0.5W ("Off")

Ergonomics

FeatureSpecification
Wall Mount (VESA)100 x 100

Operating Conditions

FeatureSpecification
Temperature5°C to 40°C (Landscape only)
Humidity20% ~ 90% non-condensing

Dimensions (W x H x D)

FeatureSpecification
Physical572.9 x 351.8 x 47mm (22.6 x 13.9 x 1.9 inches)
Packaging643 x 435 x 140mm (25.32 x 17.13 x 4.93 inches)

Weight

FeatureSpecification
Net5.64 kg (12.43 lb)
Gross7.56 kg (16.65 lb)

Regulations

FeatureSpecification
ComplianceFCC, cUTVus, FCC-ID, IC-ID, CE, CB, R&TTE, RoHS, ErP, WEEE

Package Contents

Item NumberDescription
1IFP2410
2Power adapter
3Power cord (*Applicable power cord is shipped based on country power type)
4Quick Start Guide
More Information
SKUIFP2410
BrandsViewSonic
Screen Size24 Inch
Native ResolutionFHD (1920 X 1080)
Aspect Ratio16:9
Built-in PCAndroid
ColorBlack
