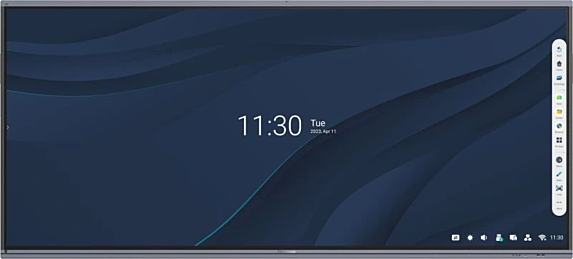

ViewSonic ViewBoard IFP105S
OVERVIEW
The ViewBoard IFP105S delivers an expansive interactive experience with its 21:9 aspect ratio and stunning 5K resolution. The 105” display allows for multitasking with split-screen functionality, enhancing collaboration and productivity. With highly responsive 40-point touch capabilities, every input is registered naturally and intuitively. Enjoy seamless wireless screen casting and sharing through vCast. Designed for both in-person and hybrid collaboration, the ViewBoard IFP105S is an ideal solution for meeting rooms, enabling seamless presentations, ideation, and decision-making.
Transform Collaboration with Ultra-high Resolution
Elevate your meetings with the future-ready 5K resolution of the ViewBoard IFP105S, delivering stunning visuals and precise details. With its higher pixel density, you can present with unparalleled clarity, collaborate with precision, and effortlessly interact with content in ultra-high resolution.
Ultrawide Collaborative Display
Create a forward-looking collaborative environment with an impressive 105” interactive screen that features a landscape 21:9 aspect ratio, providing you with expansive room for seamless teamwork.
Empower Hybrid Meeting
Purpose-built for hybrid meetings, the ViewBoard IFP105S offers abundant space to fully leverage advanced video conferencing features like Front Row or Gallery Mode in Zoom Rooms and Teams Rooms, while allowing for clear presentations, seamless chat, and effortless file sharing.
Simultaneous Input for Enhanced Collaboration
The ViewBoard IFP105S takes team collaboration to a new level. With 40 touch points, multiple individuals can simultaneously write on-screen content using their fingers or a stylus, fostering group brainstorming sessions and compelling presentations.
Efficient Multi-screen Multitasking
Enhance meetings and collaborative sessions with multi-window and split-screen modes. Use multi-window mode to display up to 4 windows simultaneously for a comprehensive document overview during brainstorming. Sketch on the board or share resources while monitoring the ongoing video conference side by side in split-screen mode.*
*Split-screen mode supports only embedded apps. Multi-window mode allows one embedded app and one source input.
Comprehensive Wireless Screen Sharing
Don’t waste valuable meeting time on setup. Enjoy instant, simultaneous wireless screen sharing of up to 9 devices through vCast for effective communication and efficient collaboration during team meetings.
User-centric Design
The user-centric design of the ViewBoard IFP105S ensures easy access to all I/O ports. The front panel features two USB slots for quick connection and switching between flash drives, and the versatile connectivity is complete with one front-facing and one side-facing USB-C port. Simply plug in your laptop to either one of them and instantly benefit from power charging, fast data transfer, multimedia broadcasting, and ethernet.
Maximize Productivity with Integrated Windows Experience
Unlock new productivity possibilities and work in the familiar Windows OS by coupling the ViewBoard with an optional slot-in PC. Equipped with dual-band Wi-Fi, Bluetooth, a powerful Intel® Core™ CPU, abundant memory, and ample data storage, this module delivers solid computing performance to support even the most demanding applications.
Enhance Collaboration With a Customized Meeting Space
Tailor your meeting space to match your workflow and meeting requirements by customizing the ViewBoard with various compatible add-ons such as a conference camera, expansion microphone, slot-in PC, Wi-Fi module, AirPen, and more.
Powerful Remote Management
The built-in myViewBoard Manager software empowers IT teams and administrators to centrally manage one or multiple ViewBoards. It enables automatic on/off scheduling to reduce power consumption, multimedia message broadcasting, quick troubleshooting, and facilitates issue resolution. Additionally, it allows for remote optimization of device configurations based on real-time usage reports.*
*Optional myViewBoard Manager Advanced subscription is required for certain functionalities.
Energy-efficient Solution
Dedicated to sustainability, ViewSonic is actively working to incorporate advanced energy efficiencies and eco-friendly concepts throughout its product lines. The ViewBoard IFP105S has achieved EPEAT Silver and Energy Star 8.0 certifications, meeting the required criteria for energy consumption, supply chain carbon emissions, and end-of-life management.
Display
| Feature | Specification |
|---|
| Panel Size | 105" |
| Panel Type | TFT LCD Module with DLED Backlight, VA |
| Display Area (mm) | 2449.92(H) x 1033.56 (V) (104.6” diagonal) |
| Aspect Ratio | 21:9 |
| Resolution | WUHD 5120x2160 (Pixels) |
| Colors | 1.07B colors |
| Brightness | 400 nits (typ.) |
| Contrast Ratio | 4000:1 (Typ.), 5000:1 (Min. with DCR enabled) |
| Response Time | 6.5ms |
| Viewing Angles | H = 178°, V = 178° (Typ.) |
| Backlight Life | 30,000 Hours (Min.) |
| Surface Treatment | Panel Hard Coating 3H, Glass Anti-Glare 7H |
| Bezel | 19.5/19.5/29.8/41.2 mm |
| Orientation | Landscape |
Platform
| Feature | Specification |
|---|
| Processor | Octa-Core CPU (A764 + A554) |
| RAM | 8GB LPDDR |
| Storage | 64GB eMMC |
Touch
| Feature | Specification |
|---|
| Type/ Tech | IR Recognition |
| Touch Resolution | 32767 x 32767 |
| Touch Points | Windows: 40, Android: 20 |
Input
| Feature | Specification |
|---|
| HDMI | x4 (Rear x3: HDMI 2.0 with CEC; Rear x1: HDMI 2.1 with CEC) |
| DisplayPort | x1 |
| Audio | x1 |
| Microphone | Built-in 8 Array Microphone |
| RS232 | x1 |
| OPS Slot | x1 |
| WiFi Module Slot | x1 |
Output
| Feature | Specification |
|---|
| HDMI | x1 |
| Audio | x1 |
| SPDIF | x1 |
LAN
| Feature | Specification |
|---|
| RJ45 | x2 (In x1; Out x1; 1000m for Android/PC; 100m for Type-C) |
USB
| Feature | Specification |
|---|
| Type A | USB 2.0 x1 (Bottom) (for FW upgrade) |
| USB 3.0 | x6 (Top x2 + Rear x2 + Front x2), all support Smart USB |
| Type B | x3 (Bottom x1; Rear x2) |
| Type C | x2 (Rear x1: PD65W with OPS, 100W without OPS + DP1.2 + Data + 10M/100M sharing; Front x1: PD15W + DP1.2 + Data + 10M/100M sharing) |
Speakers
| Feature | Specification |
|---|
| Speakers | 16W x 2 + 15W x 1 subwoofer |
Top Camera Plate
| Feature | Specification |
|---|
| Camera Plate | Yes |
Embedded OS
| Feature | Specification |
|---|
| OS | Android 13 |
Bundle Software
| Feature | Specification |
|---|
| Basic Annotation Software | myViewBoard Whiteboard for Android |
| Pro Annotation Software | myViewBoard Whiteboard for Windows (embedded in VPC) |
| Wireless Presentation | myViewBoard Display, vCast, AirSync* (*Replacing myViewBoard Display in Q1 2025) |
| Device Management | ViewSonic® Manager |
| ViewSonic Launcher | Yes |
Special Features
| Feature | Specification |
|---|
| All-in-one USB port | Yes |
| One Click to Cloud Drive | Yes |
| Simple LAN sharing between IFP & Slot-in Device | 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000) |
| Light Sensor | x1 |
Power
| Feature | Specification |
|---|
| Voltage | 100-240VAC +/- 10% Wide Range |
| Consumption | On: 176W (Energy Star) / Off: <0.5W |
Ergonomics
| Feature | Specification |
|---|
| Wall Mount (VESA) | 1000 x 400 |
Operating Conditions
| Feature | Specification |
|---|
| Temperature | 0°C to 40°C |
| Humidity | 20% ~ 80% RH non-condensing |
Dimensions (W x H x D)
| Feature | Specification |
|---|
| Physical | 98.71 x 44.49 x 4.06 in / 2507.2 x 1130.1 x 103.2 mm |
| Packaging | 105.19 x 51.38 x 11.02 in / 2668 x 1305 x 280 mm |
Weight
| Feature | Specification |
|---|
| Net | 201.5 lb / 91.4 kg |
| Gross | 225.1 lb / 115.7 kg |
Regulations
| Feature | Certification Standards |
|---|
| Compliance | cTUVus, FCC/ICES003, LBL (Low Blue Light Filter), FF (Flicker Free), CE EMC, CB, RoHS Green BOM, RoHS DoC, ErP, REACH SVHC List, DoC, EEL, WEEE, BSMI |
Package Contents
| Item Number | Description |
|---|
| 1 | 3m Power Cord (Based on shipping area) |
| 2 | Remote Control with AAA Battery |
| 3 | 3m Touch USB Cable |
| 4 | Touch Pen x2 |
| 5 | Quick Start Guide + Compliance Statement |
| 6 | RS232 Adapter |
| 7 | Clamp x5 |
| 8 | Camera Plate |
| 9 | Screw x6 (2 for Camera, 4 for Wall Mount) |
| 10 | HDMI Cable 3m |
