Give your huddle spaces the power and flexibility of hybrid collaborations with the sleek, compact ViewBoard® IFP4320 display. Designed to enhance smaller meeting spaces, the 43" screen boasts intuitive 10-point In-cell Touch technology for a smoother and more responsive writing experience with every tap, pinch, and swipe. Enjoy true interactivity and dynamic productivity with a single-cable plug-and-play solution from USB Type-C connectivity and seamless content sharing across different platforms. Integrated with myViewBoard ecosystem applications such as Whiteboard, Display, and Manager, you have complete control over huddle management, wireless content casting, and device settings wherever you are.
Huddle your way
Bounce ideas off your team anywhere, anytime with the compact ViewBoard IFP4320. Choose from two types of stands for your preferred way of collaboration. The detachable desktop stand lets you move the 43" 4K Ultra HD display into any room for an interactive discussion. And the adjustable table boasts tilt, swivel, and height adjustments for dynamic stand-ups meetings or impromptu huddles.
Plug and present instantly
Jump into meetings in an instant seamlessly with single-cord USB Type-C connectivity. Simply plug your laptop into the ViewBoard IFP4320 and you can present and annotate your slides immediately, all while charging your device simultaneously.
Time to flex wirelessly
Show off your blue-chip concepts and interactive graphs effortlessly as you connect across multiple devices wirelessly. Paired with ViewBoard Cast, you can sync additional peripherals to the ViewBoard IFP4320 without the need of messy cables, and annotate and work on the same file in real time on either device via intuitive touch feedback technology.
Start your meetings efficiently

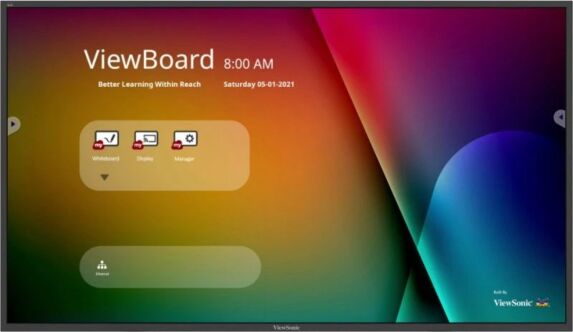

Equipped with screen mirroring capabilities from myViewBoard Display, hop onto the next meeting by casting your window onto the ViewBoard IFP4320 easily. Ideal for hassle-free presentations, myViewBoard Display allows guest users to cast their content directly via an internet browser without additional cables or software.
Category
Specifications
Display
Panel Size
43"
Panel Type
TFT LCD Module with ELED Backlight
Display Area (mm)
941.184 (H) x 529.416 (V) (42.51” diagonal)
Aspect Ratio
16:9
Resolution
UHD 3840x2160 (Pixels)
Colors
1.07B colors (10-bit)
Brightness
350 nits (typ.)
Contrast Ratio
1000:1
Response Time
9 ms
Viewing Angles
H = 178°, V = 178° (typ.)
Backlight Life
30,000 Hours (Typ.)
Surface Treatment
Anti-Glare 4H hardness
Bezel
L: 10.9 / R: 10.9 / T: 10.9 / B: 13.8 mm
Orientation
Landscape
Platform
Processor
ARM Cortex A73 + A53
RAM
3GB DDR4
Storage
16GB
Touch
Type/Tech
LGD In-cell 10 points touch
Touch Resolution
32767 x 32767
Touch Points
Windows/Android: 10 points touch
Input
HDMI
2.0 x1 (3840x2160 @60Hz)
RGB/VGA
x1
DisplayPort
x1
DVI
x1
Audio
x1 (PC audio in, 3.5mm jack)
RS232
x1
Output
Audio
x1 (Earphone out)
SPDIF
x1 (Fiber)
LAN
RJ45
x1
USB
Type A
USB 2.0 Bottom x2
Type B
x1 for HDMI/DP/DVI/VGA touch
Type C
x1 (DP1.2, 60W power delivery)
Speakers
10W x2
Compatibility
RGB PC/HDMI PC
1080p/4K @ 60Hz
HDMI
3840x2160 @ 60Hz
DisplayPort
3840x2160 @ 60Hz
DVI
3840x2160 @ 30Hz
Embedded OS
Android 8.0
Bundle Software
Basic Annotation Software
myViewBoard Whiteboard for Android
Wireless Presentation
ViewBoard Cast & myViewBoard Display
Special Features
All-in-One USB Port
Bottom “Smart USB” port for all channels
Power
Voltage
100-240VAC ±10% Wide Range
Consumption
On: 120W (typ.) / Off: <0.5W
Ergonomics
Wall Mount (VESA®)
400 x 400
Operating Conditions
Temperature
0°C to 40°C
Humidity
20% ~ 80% RH Non-Condensing
Dimensions (W x H x D)
Physical (mm/inch)
967 x 558.1 x 55.7 mm / 38.072 x 21.973 x 2.193 in. (w/o Stand)
With Stand (mm/inch)
967 x 582.8 x 207.1 mm / 38.072 x 22.943 x 8.155 in.
