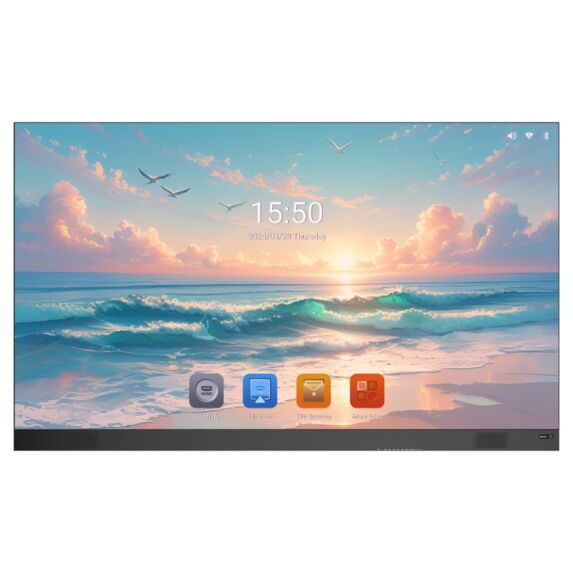

Unilumin UTV SC108 108” 1.25mm Pixel Pitch Full HD COB All in One LED Display

The Unilumin UTV SC108 108” Full HD COB All-in-One LED Display delivers exceptional image quality and advanced functionality, making it the ideal choice for professional and commercial applications. Featuring a 1.25mm pixel pitch with Full Flip Chip COB technology, this display offers superior brightness, contrast, and precision, ensuring crystal-clear visuals with outstanding reliability.

Designed for efficiency, the common cathode power design dynamically adjusts power consumption, reducing energy usage without compromising performance. The Android 11.0 operating system provides a seamless and intuitive user experience, while the DCI-P3 movie-grade colour gamut ensures true-to-life colour accuracy. With built-in Miracast screen casting, sharing content wirelessly is effortless, making collaboration and presentations smoother than ever.

The Unilumin UTV SC108 is engineered for convenience with full front maintenance, allowing for easy servicing and accessibility. Its standard wall-mount design ensures a hassle-free installation process, while the built-in audio system delivers an immersive sound experience without the need for external speakers. Certified with 3C, CQC, CE, CB, and TUV approvals, this display guarantees top-tier quality, safety, and reliability.

Ideal for conference rooms, control centres, retail environments, and high-end commercial spaces, the Unilumin UTV SC108 is a cutting-edge LED display solution that combines innovation, efficiency, and high-performance visuals. Upgrade your viewing experience today with this all-in-one LED display.

Ultra-narrow bezel

Designed for a sleek and immersive viewing experience. With an ultra-narrow bezel and a 93% screen-to-body ratio, it maximises the display area while maintaining a modern aesthetic. Its 30mm thickness ensures a slim profile, making it ideal for seamless integration into any space. Constructed from die-cast aluminium, this display offers enhanced durability with a lightweight yet sturdy build, ensuring long-lasting performance.

Effortless Usability

Simplify operation with just one click, making control and adjustments quick and intuitive. The Android operating system is internally integrated, eliminating the need for external devices and ensuring a seamless user experience. An indicator light displays the working status, providing clear, real-time system feedback for added convenience.

Smart Screen Casting

The LED Display supports four-screen projection, allowing multiple users to display content simultaneously for enhanced collaboration. With Miracast screen casting, wireless streaming is smooth and hassle-free. The reverse screen transfer feature enables effortless interaction, making presentations and meetings more dynamic and engaging.

Ultimate Pure Viewing Experience

Featuring Ultimate Black technology, it ensures deeper blacks and greater contrast for vivid, lifelike visuals. With a 50% reduction in reflectivity, it minimises glare, providing a clearer view in any lighting environment. The Touch No Trace feature ensures a pristine screen, leaving no fingerprints or marks, maintaining a clean, crisp display at all times.

Enhanced Viewing Experience

The COB All-in-One LED Display features a soft display light source that ensures a comfortable viewing experience with a surface light source delivering soft light across a wide 165° horizontal and 155° vertical viewing angle. This enhances the visual experience with high reliability and stability. The contrast ratio has been improved by three times, achieving an impressive 10000:1 ratio, ensuring deeper blacks and more vibrant colours. Additionally, a 50% reduction in reflectivity minimises glare, providing clear visuals in any environment.

Energy-Saving Technology

Energy-saving technology to optimise performance and reduce environmental impact. It adopts a common cathode design, significantly reducing energy consumption while maintaining exceptional display quality. The RGB full flip design ensures high utilisation of light sources, resulting in lower power consumption without compromising brightness or clarity.

Eye Protection

The design prioritises eye protection by addressing blue light hazards. Through the use of advanced LED blue light chip wavelength screening from the original material supply side, it effectively reduces blue light exposure, helping to safeguard eye health during prolonged use.

High Performance

This COB All-in-One LED Display boasts a High Performance configuration with 8-core processing, featuring 4 Cortex-A73 cores and 4 Cortex-A53 cores for powerful and efficient performance. It supports dual-band WIFI, enabling screen casting and internet access to run simultaneously for a seamless user experience. The display can handle a maximum resolution of 3840x2160 at 60Hz, ensuring crisp, high-quality visuals for all applications.

Professional Audio

Professional audio with built-in, full-range sound for an immersive audio-visual experience. Its self-amplifier design ensures high-quality sound, with a frequency response range of 90Hz to 20kHz, providing clear, rich audio without the need for external speakers.

Integrated Design

The LED Display features an integrated design with an array-type full front maintenance system, allowing for quick and easy installation and maintenance. Its minimalist structure is 40% more compact compared to traditional LED products, offering a sleek, space-saving solution without compromising performance.

Key Features of Unilumin UTV SC108 1.25mm 108 Inch UTV SC Series COB All in One LED Display

Basic Parameters

• Diagonal Size: 108 inch
• Display Ratio: 16:9
• Resolution (WxH): 1920 x 1080
• Pixel Pitch: 1.25 mm
• Visible Area: 3.24 m²
• Dimensions: 2411 x 1476 x 30.4 mm
• Thickness: 30.4 mm (without wall-hung) / 52.4 mm (with wall-hung)
• Planeness: ≤0.1 mm
• Weight: 80 Kg
• Material: Die-Cast Aluminium
• Border Material/Colour: Aluminium Profile / Black
• Maintenance: Front
• Installation Method: Wall-mounting, Mobile stand

Display

• LED Type: COB
• LED Life Time: ≥100000
• Horizontal/Vertical Viewing Angle (degree): H：170° / V：160°
• Brightness: 600 cd/m² (adjustable)
• Refresh Rate: 3840 Hz
• Video Frame Rate: 50/60 Hz
• Processing Depth: 13 Bit
• Contrast Ratio: 10000:1
• Colour Temperature: 2000K~9500K
• Pixel Level Brightness Calibration: Support
• Pixel Level Colour Calibration: Support
• Brightness Uniformity: ≥98%
• Colour Uniformity: ±0.003Cx,Cy or less

Mainboard Parameters

• Operating System: Android 11.0
• CPU: Cortex A73*4+A53*4
• RAM/ROM: 8GB DDR4/64GB
• Interface: SPDIF x 1, USB2.0 x 1, HDMI in x 2, USB3.0 x 3, Audio out x 1, LAN x 2
• WiFi: WiFi 5 + WiFi 6 (Dual wifi)
• Bluetooth: 5.0
• Remote Control: Support
