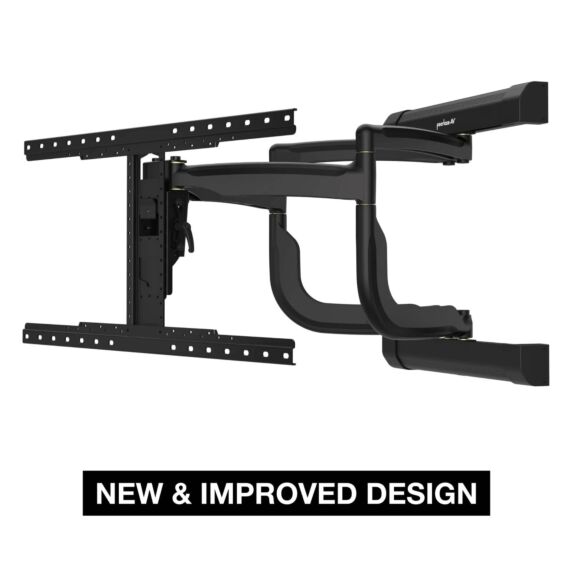

Peerless-AV SA771PU SmartMount® Articulating Wall Mount for 50" to 90"+ Displays

Peerless-AV’s SmartMount® Articulating Wall Mount series has been redesigned to accommodate larger displays, offering enhanced versatility and mounting options. The I-shaped adaptor centers displays, regardless of the VESA® pattern on the back, which eliminates hassle and extra costs when upgrading displays. The SA771PU extends displays up to 30.5" (774mm) or retracts to 3.0" (76mm) from the wall, granting increased swivel for large displays. Compatibility with In-Wall Box accessories (IB14X9-W, IB14X14-W) offers easier access to power or AV devices. Horizontal adjustment range is ±8" to center a display on a 16" stud-spaced wall. Meanwhile, the Hook-and-Hang™ feature produces simplified installation and One-Touch™ tilt technology provides an optimal viewing angle. Integrated cable management ensures a clean and professional installation.

• Hook-and-Hang™ feature simplifies the installation of the display on the tilt head of the wall mount
• Easily shift the mount arm right or left up to ±8" (203mm) to center the display in a room, regardless of stud locations
• Extends up to 30.5" (774mm) and retracts 3.0" (76mm) from the wall for the perfect viewing angle
• Open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes
• Integrated cable management protects, contains and conceals cables for a clean, professional installation
• Adaptor plate can be raised or lowered to accommodate different VESA® patterns at the top, center, or bottom of the display for a perfect fit
• Universal mount accommodates 200 x 100 to 800 x 400mm VESA® mounting patterns
• ±90° of pivot allows for perfect display positioning
• Easy leveling ±5° after display installation
• Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
• Lock the display at any angle with the ratcheting handle
• Stylish wall plate covers create a finished look and are easy to install and remove
• I-shaped adaptor plate helps avoid blocking connections on back of display
• Includes all necessary wall and display attachment hardware
• Mounts to wood stud, concrete, cinder or breeze block

Product Specifications

• Dimensions (W x H x D): 32.36" x 21.06" x 3.00"-30.50" (822 x 535 x 76-774mm)
• Product Weight: 36.4lb (16.5kg)
• Display Compatibility Range:  50" to 90"+
• Load Capacity: 200lb (90.7kg)
• Mounting Pattern:  200 x 100 to 800 x 400mm
• Finish: Scratch Resistant Fused Epoxy
• Available Colors: Semi-Gloss Black
