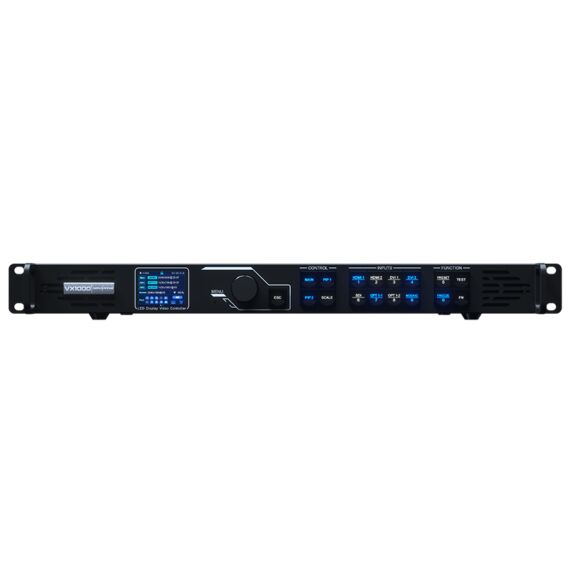

NovaStar VX1000 LED Display Controller All-in-One Controller (LED Video Processor + Scaling)

The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.

• 10 Ethernet ports of output provide 6.5 million pixels of loading capacity
• A single unit can output a maximum width of 10,240 pixels, with a maximum height of 8,192 pixels
• 4K x 1K@60Hz high resolution input, 4K x 1K point to point display
• 3 x 4K layers, free scaling for each layer

Loading Capacity

• 6.5 million pixels

Max Width & Height:

• Max width: 10240 pixels
• Max height: 8192 pixels

Layers

• 3x 4K×1K

Input connectors

• 1x 3G-SDI
• 2x HDMI 1.4
• 2x DVI（HDMI 1.4）
• 1x OPT1

Output

• 10x Ethernet Ports
• 1x HDMI1.3
• 1x HDMI1.4 LOOP
• 1x DVI LOOP
• 1x 3G-SDI LOOP
• 2x OPT

Presets

• 10

Controll Connectors

• 1x Ethernet Port
• 2x USB (input & output)
• 1x GENLOCK (IN & LOOP)
