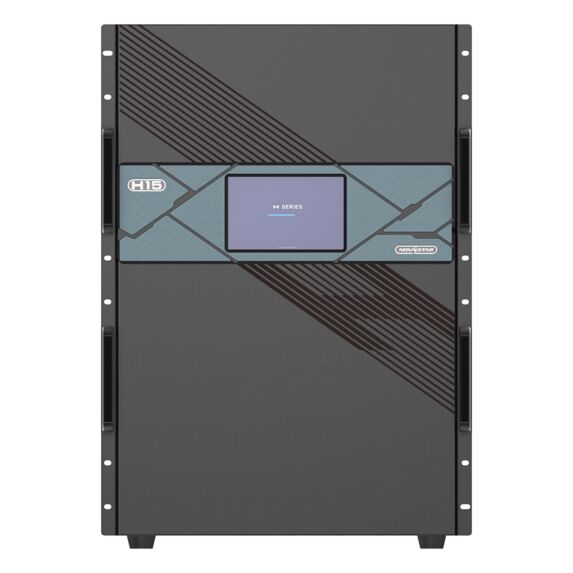

NovaStar H15 Enhanced Video Wall Splicer

The H15 Enhanced is part of NovaStar's latest generation of video wall splicers, which are characterized by outstanding image quality and have been specially developed for fine-pitch LED displays. The H15 Enhanced can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration and hot-swapping of input and output cards. Thanks to its outstanding features and stable performance, the H15 Enhanced can be used in a wide range of applications.

Hardware features:

• Two different types of 4K Sending Cards available:
  • H_20xRJ45: Manages up to 13 million pixels
  • H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• Various configurations possible on one Sending Card:
  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 1x 4K×2K@60Hz
• Online monitoring for all input & output cards
• "Hot-swap" function for all input & output cards
• IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic
• Automatic decryption of HDCP protected sources
• Multi-screen management
• Web Control

Specifications:

• Max. Number of input cards: 30
• Max. Number of output cards: 16
• Max. Number of input channels: 120
• Max. Loading capacity: 130,000,000 pixels
• Max. Number of layers: 160

general specifications:

• Supply voltage: AC 100-240V, 50/60HZ (The device is supplied with dual power supply units. Two backup power supplies are optionally available)
• Power consumption: 900 watts
• Dimensions: 482.6 x 683.0x 533.0mm (WxDxH)
• Weight: 61,8kg

ATTENTION: This item is only a housing. All input/output cards must be ordered separately.
