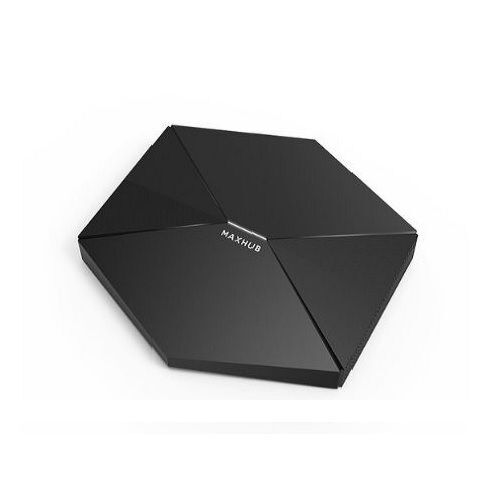

MAXHUB WB01 Mirroring Box - Wireless Presentation Device

The Maxhub WB01 Mirroring Box is a real-time mirroring, without the limitation of cables. MAXHUB multi-screen interactive technology supports 4-split screen real-time mirroring, showing you a clear data comparison. MAXHUB mirroring box can project PC, smartphone, and tablet to the big screen.

FEATURES

Upgrade your conventional conference room with Maxhub Mirror Box for Real time mirroring, without the limitation of cables.Get New HD vision with fluidity. A small size, but high performance and exceptional experience. Mirror box is a Platform-based intelligent management, and all terminals are easily controlled.

• Android 7.1 system.
• Ultra-large storage.
• Support 2.4GHz/5GHz dual-frequency.
• Wi-Fi, smooth HD video playback.
• Supports 4-split screen real time mirroring.

QUICK SPECIFICATIONS

• Output Resolution: Support 4K@60fps and above video output when casting onto 1 display, Support 2K@60fps and above video output when casting onto 2 displays
• Video Encode/Decode: H.264,H.265 hard decoding
• Wireless Transmission Protoco: lIEEE 802.11 a/g/n/ac
• Wireless Band: 2.4GHz,5GHz (support transmitting AP hotspot)
• Wi-Fi Antenna: Support 2T2R
• Compatible Transmit Terminals: Support SM01 wireless mirroring (Windows, Mac OS)；support mobile phone/tablet wireless mirroring(Android/iOS)
• Transmit Terminal Quantity Limit: 8
• Screen Split Limit: 4
• Version: Android 7.1
• CPU: 2×A72+4×A53
• GPU: Mali T860
• RAM: 4GB
• ROM1: 6GB
• Optical Fiber Output: 1
• USB2.0: 2
• HDMI OUT: 2
• DC Input: 1
• LAN: 1
• Buttons: Short press to freeze/wake, long press to power on/off
• LED Indicator: White

WHAT'S INCLUDED

• Maxhub WB01 Mirroring Box
• 1 Wireless Dongle
• User Guide
