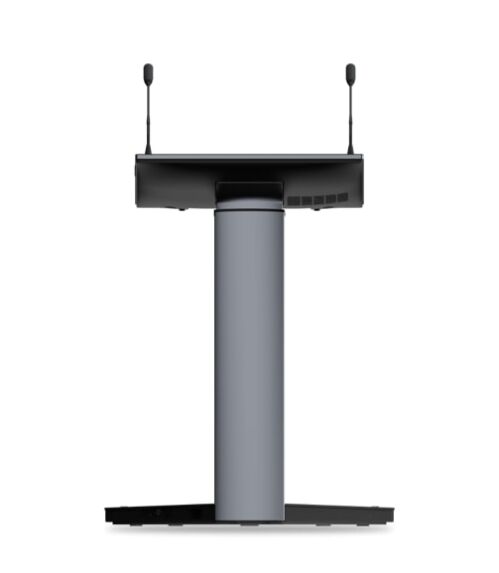

Maxhub Smart Lectern Podium SL22MC

The MAXHUB Smart Lectern is a fully integrated next-generation smart lectern integrated with a PC (computer), dual microphones, an integrated smart screen, and an adjustable height smart device.

Integrates PC, microphone, and touch screen into a singular device. Being stable and durable enhances the corporate image.

Singular. Exemplary. Enthralling

• Integrates PC, microphone, and touch screen into a singular device. Being stable and durable enhances the corporate image.

Screen-sharing Re-invented

• Connects with mobile devices, and laptops, and synchronizes the screens with an onstage display; You can easily switch between devices.

Annotation at Will

• Annotate the smart lectern while facing the audience to improve engagement.

Electrically Adjustable Height that Fits Your Stage

Making you comfortable on stage, both for making hand gestures and annotating or touching on the smart lectern on MAXHUB Smart Lectern.

• Mobile on wheels. Wait not, to take your speech to a wider audience.
• Supports Windows 7 and above, macOS 10.10 and above, iOS 9.0 and Android 5.0, and. The “MAXHUB Share” app needs to be downloaded, installed properly, and granted necessary network access.
• The onstage display includes MAXHUB Integrated LED Walls, MAXHUB Interactive Flat Panels, and display systems that work with a MAXHUB Wireless Box or support HDMI input.
• Supports Windows 7 and above, macOS 10.10 and above, iOS 9.0, and Android 5.0 and above. The “MAXHUB Share” app needs to be downloaded, installed properly, and granted necessary network access.
• Supports screen-sharing from personal devices to the smart lectern, screen-sharing from the lectern to the external display via HDMI or wireless connection, and relay the screen-share from personal devices to the external display with on-screen annotation features.
• When connected in the same WLAN with a MAXHUB Integrated LED Wall, MAXHUB Smart Lectern does not need any additional apps to achieve wireless screen-sharing. However, when connected to other display systems, additional apps may be required to install on the smart lectern to do so or through a MAXHUB Wireless Box.
• A MAXHUB Smart Lectern supports simultaneous connection with up to 8 devices and instant switch amongst them.

Features

• Dual Gooseneck Microphones
• 21.5" integrated touch screen (stylus/pen or finger)
• Electromagnetic Writing Pen
• Integrated Intel i5-based Personal Computer (Microsoft Windows 10)
• Network Connection via WiFi to Enable Wireless Content Sharing
• Height Adjustable and Integrated mobile castors
• Color: Black

Display

• Size: 21.5 inches
• Screen Type: IPS
• Resolution: 1920x1080
• Color Depth: 8bit/16.7M colors

Touch

• Touch Technology: P-Cap + EMR
• Capacitive Touch Points: 10 points
• EMR Touch Points: 1 point
• Tough With: Stylus or Finger
• Touch Accuracy (Stylus): 10.5mm
• Types of EMR Stylus Supported: SP08 Electro-magnetic Stylus/1024 Pressure Sensitivity

Computer

• Operating System: Microsoft Windows 10
• CPU: Intel 8th Gen i5
• RAM/Memory: 8GB
• Hard Storage: 128GB SSD
• Network: WiFi

Connections

• HDMI: 1x Out
• Audio: 1x Out
• USB 2.0: 2x

Wireless Sharing

• Distance: 12 meters
• Frequency: 2.4GHz/5GHz

Audio/Video

• Speakers: 2x
• Microphone: 2x, Gooseneck
