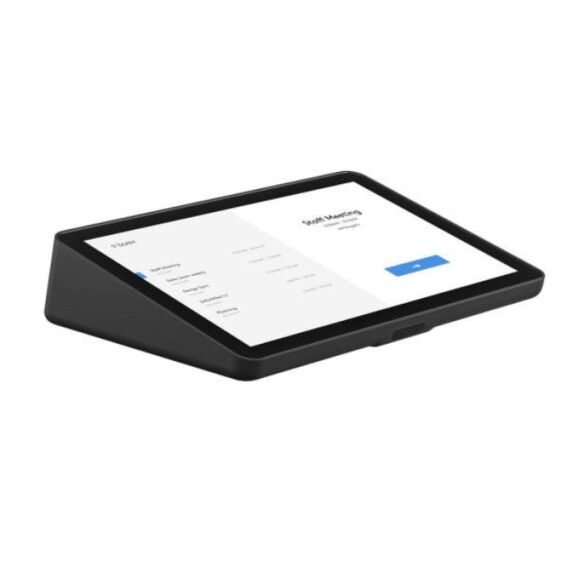

Logitech Tap IP Touch Controller - 10.1" LED Touch Display - 952-000085

Logitech Tap Touch Controller for video conferencing services, including Google Meet, Microsoft Teams Rooms, and Zoom Rooms

One-touch join: Easily start and join meetings with just one tap.,10.1" touch display: Spacious and responsive touch screen resists fingerprints for high legibility, and is sealed to protect components., Motion sensor: Built-in motion sensor allows for always-on readiness when a user approaches and saves power when idle., Sleek, low profile: A comfortable 14° angle allows for easy viewing while providing an unobtrusive presence in the room.,Single PoE cable: One cable for both power and data means flexible placement anywhere in the room, untethered to the room system and without the need for long cable runs., Clean cable management: Built-in cable retention and strain relief system hides the PoE cable entirely within its enclosure, and secures it to prevent unwanted disconnections., Multiple mounting options: Secure Tap IP almost anywhere in the room with available Table, Riser, and Wall Mounts for convenient placement near room participants.

Key Features

• Voice/Video Calls with Teams, Zoom
• 1" LED Touchscreen with Coating
• Control and Power via PoE
• Ethernet, Wi-Fi, Bluetooth Capabilities
• Angled Display with Motion Sensor
• Integrated Speaker

TECHNICAL SPECIFICATIONS

Screen

• Size: 10.1” (256.54 mm) diagonal
• IPS (In-Plane Switching)
• LCD Panel with LED Backlighting
• Resolution: 1280 x 800 resolution
• Touch: Capacitive, 10 points multi-touch
• Brightness: 400 nits
• Contrast: 1000:1
• Anti Fingerprint: Oleophobic coating
• Viewing angle: 85 degrees (U/D/L/R)
• Position angle: 14 degrees

General Specifications

• Integrated ultrasonic speaker
• Integrated PIR Motion Sensor
• Integrated accelerometer
• Integrated ambient light sensor
• 100 mm x 100 mm VESA FDMI
• Internal cable retention and strain relief system

COMPATIBILITY AND CERTIFICATIONS

• Logitech Tap IP is certified or compatible as a touch controller for video conferencing room solutions
  • Microsoft Teams Rooms on Android on Logitech Rally Bar, Rally Bar Mini, or RoomMate
  • Zoom Rooms (any)
  • RingCentral Rooms™
• See www.logitech.com/support/tap-compatibility for the latest certification and compatibility updates.
• Logitech CollabOS platform
• Logitech Sync Remote Management

Power and Cables

• Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device. ⁴Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

PORTS AND INTERFACES

• Ethernet: 10/100 Mbps
• WiFi: 802.11a/b/g/n/ac
• Bluetooth 5.0

Environmental

• Operating Temperature: 0 to 40°C
• Stored Temperature: -40 to 70°C
• Humidity: 10 to 95%

Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Key Protection: Arm TrustZone, RPMP
• Device Security: Kensington Lock

Optional Accessories

• Riser Mount
• Table Mount
• Wall Mount
