LG MAGNIT 163-inch Micro LED Display – 1.25mm Pixel Pitch (LSAB012-M12)

LG MAGNIT 163″ P1.25mm Micro LED – Ultimate Immersive Display

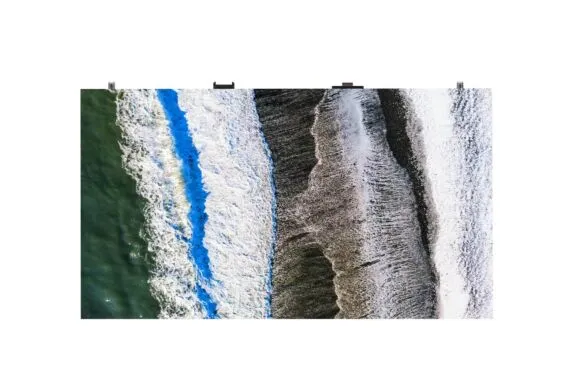

Step into the next generation of signage with the LG MAGNIT 163″ Micro LED Display (model LSAB007). With a razor-sharp 1.25 mm pixel pitch, chip-on-board technology and cable-less architecture, it delivers stunning clarity, deep contrast and seamless installation for high-end lobbies, showrooms, control rooms and luxury retail environments.

Key Highlights

• fine Pixel Pitch: 1.25 mm – Achieve incredible resolution even up close, ensuring every detail remains crisp and lifelike.
• Large Format: 163″ Diagonal – Make a bold, premium impact in large spaces.
• Micro LED Technology & Chip-on-Board Design – Deep blacks, high contrast and uniform brightness across the entire screen.
• Cable-less Signal & Power Transmission – Simplified installation and clean aesthetics—only minimal cabling to system controller and main power, with no inter-module cables.
• High Brightness & Strong Contrast – Peak brightness 1,000 nit and 500 nit calibrated; contrast ratio up to 28,000 : 1 at 10 lux for vivid imagery even in ambient-light environments.
• Wide Viewing Angles & TÜV-Certified Color Consistency – Delivers accurate, consistent color and viewing quality from virtually any angle.
• Smart Power Management – Common-cathode drive-IC technology reduces energy consumption; standby mode when no signal further conserves power and supports sustainable operation.
• Robust Installation & Maintenance – Die-cast aluminium cabinet, front-service access, and precision Z-axis module alignment ensure seamless surface finish and long-term reliability.
• AV System Integrations – Certified for Crestron Connected® compatibility for easy integration into modern AV/automation systems.
• Ideal Applications
• Premium corporate/lobby installations where first-impression visual impact matters
• High-end retail and luxury showrooms requiring pixel-perfect close-up viewing
• Control rooms, command centres and briefing centres where clarity and reliability are non-negotiable
• Hospitality, museum or visitor-experience environments seeking cinematic-level visuals

Technical Summary

• Pixel Pitch: 1.25 mm
• Pixel Density: approx. 1,638,400 pixels/m²
• Brightness: Up to 1,000 nit peak, 500 nit calibrated
• Contrast Ratio: 28,000 : 1 (10 lux)
• Viewing Angle: 150° H × 150° V
• Cabinet Dimensions: 600 mm × 337.5 mm × 44.9 mm
• Service Access: Front
• Lifetime: 100,000 hours to half brightness

Why Choose LG MAGNIT 163″?

When your environment demands nothing less than best-in-class visual performance, the LG MAGNIT series delivers. The fine 1.25 mm pixel pitch makes it exceptionally suited for viewing distances where traditional LED signage falls short. With its micro-LED architecture and thoughtfully designed installation features, it gives you a large-format display that doesn’t compromise on elegance or performance. Whether you’re outfitting a lobby, retail space, boardroom or immersive experience zone, this display sets a new benchmark for live-space visual impact.
