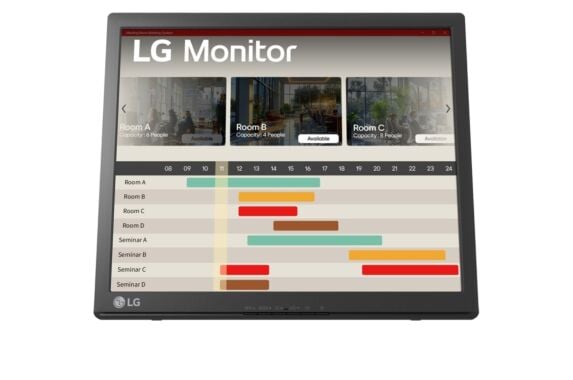

LG 17'' LG SXGA Touch Monitor 2024 The LG 17'' SXGA Touch Monitor (2024) is a compact and durable touchscreen display designed for business, industrial, and commercial applications . Featuring a 17-inch SXGA (1280 x 1024) resolution , this monitor delivers clear and sharp visuals , making it ideal for point-of-sale (POS) systems, kiosks, healthcare environments, and interactive applications .
The responsive touchscreen ensures a smooth and precise user experience, while the robust design offers reliability for continuous use. With wide viewing angles and anti-glare technology , the display remains visible in various lighting conditions. Multiple connectivity options, such as HDMI, USB, and VGA , provide seamless integration with various systems.
Built for efficiency and durability , the LG 17'' SXGA Touch Monitor is the perfect solution for interactive workstations, retail, and professional environments where touch functionality enhances productivity.
INFO Product Name Year PC Monitor Y24
DISPLAY Size (Inch) Size (cm) Resolution Panel Type Aspect Ratio 17 43.18 1280 x 1024 TN 5:4
Pixel Pitch (mm) Brightness (Min.) [cd/m²] Brightness (Typ.) [cd/m²] 0.264 x 0.264 150 200
Color Gamut (Typ.) Color Depth (Number of Colors) Color Bit NTSC 72% (CIE1931) 16.7M 8-bit
Contrast Ratio (Min.) Contrast Ratio (Typ.) Response Time Viewing Angle (CR≥10) Surface Treatment Curvature 600:1 1000:1 5ms (On/Off) 170º (R/L), 160º (U/D) Anti-Glare NO
FEATURES Feature Availability HDR 10 NO Dolby Vision™ NO VESA DisplayHDR™ NO HDR Effect NO Mini-LED Technology NO Nano IPS™ Technology NO Advanced True Wide Pol. NO Color Calibrated in Factory NO HW Calibration NO Auto Brightness NO Flicker Safe NO Reader Mode YES Color Weakness NO Super Resolution+ NO Motion Blur Reduction Tech. NO NVIDIA G-Sync™ NO AMD FreeSync™ NO VRR NO VESA Adaptive Sync NO VESA Dual-Mode NO VESA ClearMR NO Black Stabilizer NO Dynamic Action Sync NO Crosshair NO FPS Counter NO OverClocking NO User Defined Key NO Auto Input Switch NO RGB LED Lighting NO PBP NO PIP NO Smart Energy Saving YES OSD Language 18 languages Camera NO Mic NO Live Color Low Blue Light NO Others Single Point Touch
SW APPLICATION Software Feature Availability LG Switch NO LG Calibration Studio (True Color Pro) NO Dual Controller NO OnScreen Control (LG Screen Manager) NO LG UltraGear™ Control Center NO LG UltraGear™ Studio NO
CONNECTIVITY Port Type Availability D-Sub YES (1ea) D-Sub (V Frequency) 56~75Hz D-Sub (Max. Resolution at Hz) 1280 x 1024 @ 75Hz DVI-D NO HDMI NO DisplayPort NO Thunderbolt NO USB-C NO Daisy Chain NO USB Upstream Port (USB-B) 1x USB2.0 USB Downstream Port (USB-A) NO Built-in KVM NO LAN (RJ-45) NO Audio In NO Mic In NO Headphone Out NO Line Out NO
SOUND Feature Availability Speaker NO Bluetooth Connectivity NO DTS Headphone:X NO DTS Virtual:X NO DepthSound NO Maxx Audio NO Rich Bass NO Pixel Sound (Cinematic Sound OLED) NO
POWER Feature Specification Type Built-in Power AC Input 100~240V (50/60Hz) DC Output 28W (19V,1.6A) Power Consumption (On-Mode) 16W Power Consumption (On-Mode) (ErP) 12W Power Consumption (Sleep Mode) Less than 0.3W Power Consumption (DC Off) Less than 0.3W
MECHANICAL Feature Specification Borderless Design Normal Color (Front Cabinet) Black - Non Glossy Color (Middle Cabinet) Black - Non Glossy Color (Back Cover) Black - Non Glossy Color (Stand Body) Black - Non Glossy Color (Stand Base) Black - Non Glossy Display Position Adjustments Tilt Tilt +15º (±3°) ~ 66º (±3°) Wall Mountable (mm) 75 x 75 mm Base Detachable NO OneClick Stand NO
DIMENSIONS/WEIGHTS Feature Specification Dimension with Stand (W x H x D) 370 x 95 x 315 mm Dimension without Stand (W x H x D) 370 x 62 x 315 mm Dimension in Shipping (W x H x D) 429 × 154 × 377 mm Weight with Stand 3.3 kg Weight in Shipping 4.5 kg Pallet Stuffing (20ft/40ft/40ft HC) 936/2028/2028
ACCESSORY Accessory Availability Adapter NO Power Cord YES Power Cord (Color/Length) Black / 1.5m D-Sub YES D-Sub (Color/Length) Black / 1.5m DVI-D NO HDMI NO DisplayPort NO Thunderbolt NO USB-C NO USB A to B NO USB A to B (Color/Length) Black / 1.8m Remote Controller NO Calibration Report (Paper) NO
STANDARD & CERTIFICATIONS Certification Availability TCO NO EPA NO TUV-type YES TUV-GS NO TUV-Ergo NO CB YES UL (cUL) YES FCC-B YES EPEAT (USA) NO EPEAT (Germany) NO ERP YES CE YES BIS (for India) Depends on PDR VCCI (for Japan) Depends on PDR BSMI (for Taiwan) Depends on PDR KC (for Rep. of Korea) Depends on PDR CCC (for China) Depends on PDR Thunderbolt NO USB-C (USB-IF) NO USB-C (VESA) NO VESA wall mount standard NO Others (Standard) Win10
More Information SKU 17BR30T-B Brands Lg Monitor Type Business Screen Size 19 Inch Native Resolution SXGA (1280 X 1024) Response Time 5ms (GTG) Refresh Rate 60Hz Color Black
