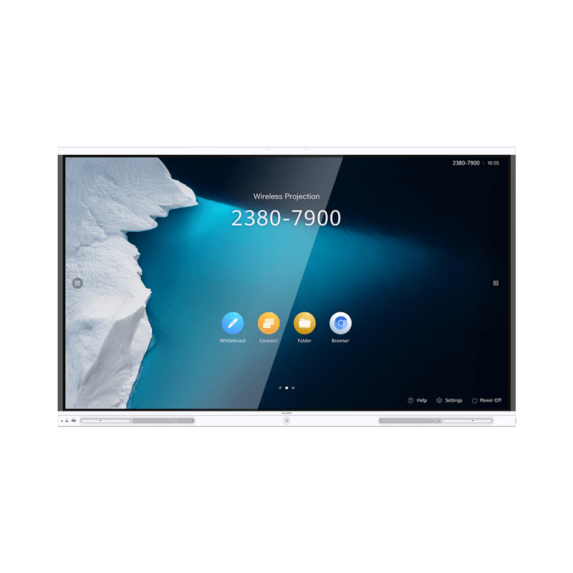

HUAWEI IdeaHub Board 65 Inch

HUAWEI IdeaHub Board 65 Inch

A 4K soft light screen and smart board designed for collaboration and creation: a space where fresh thinking and new ideas can be brought to life.

Project Minds Write Ideas

• 4K Soft Light Screen
• Optical Anti-Blue Light
• Uncompromised Quality with Vision Protection

Banish the blues: protect your eyes without compromising 4K image quality. IdeaHub Board alters blue light spectrum distribution to prevent harmful blue light at the source — by more than 60%.

The blue-light band ranges from 415 nm to 455 nm.

Low Blue Light Certification
TÜV Rheinland CERTIFIED
Professional Color Calibration178° of Crisp ColorProfessional Color Calibration178° of Crisp ColorProfessional Color Calibration178° of Crisp Color
Professional Color Calibration
178° of Crisp Color
Professional Color Calibration178° of Crisp ColorProfessional Color Calibration178° of Crisp ColorProfessional Color Calibration178° of Crisp ColorProfessional Color Calibration178° of Crisp Color
An automatic Picture Quality (PQ) color calibration algorithm produces more vibrant, vivid colors. A 178° viewing angle projects brilliant, crisp color in every direction.

4K resolution

90% National Television System Committee (NTSC) color gamut

178° viewing angle
Anti-Glare Light Crystal Clear DisplayAnti-Glare Light Crystal Clear Display

The high brightness Direct-LED (DLED) backlight screen realizes sharp images and crisp text. Automatic brightness technology adjusts the intensity of the display based on ambient light conditions, to ensure a consistently vivid experience.

Anti-glare coating

Matte diffuse reflection surface

Max. display brightness

400 cd/㎡

Multi-Screen Sharing Made EasyHuawei Projection:

• Simply tap to share what's on your laptop or phone. On-screen real-time page turning and annotation make flexible collaboration effortless.

Smart Pen:

• Bringing Virtual Collaboration to Life

Ultra-low writing latency

Intelligent recognition

Co-authoring

Multi-gesture erasure

PRODUCT DETAILS
Size	65 inches
APPEARANCE
Color	Jade white | Cadet gray
DIMENSIONS AND WEIGHT
Product dimensions (W x H x D)	1486.5 x 908.6 x 89.1 mm
Package dimensions (H x W x D)	1650 x 1050 x 210 mm
Gross weight	53.7 kg
Net weight	42.4 kg
PROJECTION
Projection mode	App free projection, DLNA, wired projection
Reverse control	√
Projection effect	4k 30 fps
SCREEN
Resolution	4K (3840 × 2160 px)
Optical anti-blue light	Supported
Refresh rate	60Hz
Color gamut	90% NTSC (typical)
Viewing angle	178° horizontal, 178° vertical
Multi-touch	20
Brightness	400cd/㎡
Aspect ratio	16:09
Screen Lamination	Zero-gap bonding
Automatic brightness adjustment	√
Anti-glare	√
SPEAKERS
Frequency domain	20Hz–20 kHz
Quantity	4
Stereo audio	√
MICROPHONE
Sound pickup distance	8m
Sound pickup angle	180° front view
Quantity	2
Frequency domain	20 Hz–20 kHz
Enhanced functions	Echo cancellation, noise suppression, automatic gain control and external microphones
SERVICE-LEVEL AGREEMENT(SLA)
Service-level Agreement(SLA)	9x5xNBD On Site
WRITING
Precision	±1 mm
Writing Latency	35 ms
Whiteboard saving mode	QR code scanning, email, USB flash drive, and local
Smart writing	Support for recognition of English Chinese, and 11 graphics
Erasing by hand gestures	√
LANGUAGE
Supported	Simplified Chinese, Traditional Chinese, English, Spanish (European), French, Russian, Japanese, German, Portuguese (Brazilian), Italian
OPERATING SYSTEM
Operating system	Android 9.0 with optional Windows 10
ELECTRICAL CHARACTERISTICS
Voltage	100V–240 V AC
Frequency	50 Hz–60 Hz
Maximum power	350W
TERMINAL INTERFACE
video input	2 x HDMI, 1 x USB Type-C port, 1 x optional OPS input
Video output	1 x built-in screen, 1 x HDMI
Audio input	1 x built-in microphone array, 1 x 3.5 mm LINE IN, 1 x optional OPS audio input, 2 x HDMI audio input
Audio output	4 x built-in speaker, 1 x 3.5 mm LINE OUT, 1 x HDMI
other ports	2 x USB A ports, 1 x USB B port, and 1 x RJ45 port
PROCESSOR
CPU	4Core @ 1.5G
RAM	8 GB
ROM	64 GB
AUTHENTICATION INFORMATION
Authentication Information	Low-blue light certification, CCRC blue standard certification for information security, CCC, CQC energy saving certification, CE (RoHS, REACH, and WEEE), VCCI, and wireless model approval

Note
The Huawei Ideahub board 65 Inch has been discontinued and has been replaced by the Huawei Ideahub board S2-65 inch IHB2-65SU.
