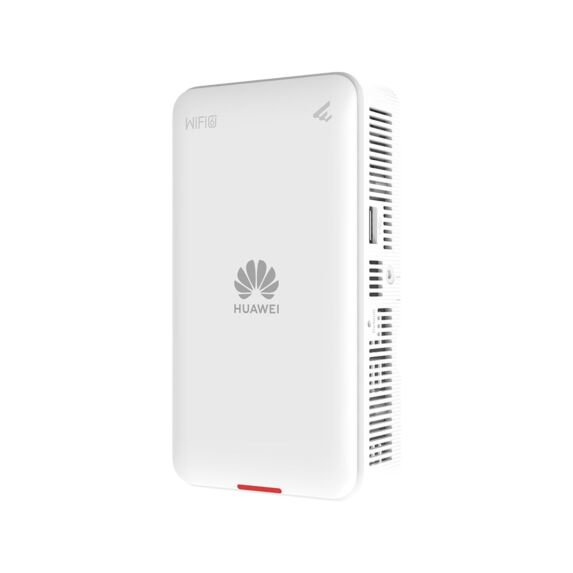

Huawei eKitEngine AP263 Wi-Fi 6 wall plate access point (AP)

Huawei AP263 is a Wi-Fi 6 (802.11ax) wall plate access point (AP) can simultaneously provide services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, achieving a device rate of up to 2.975 Gbps. This AP features high bandwidth and high concurrency with a compact size, facilitating flexible deployment and saving customers’ investment. These strengths make the AP263 ideal for indoor coverage scenarios of small and medium-sized enterprise offices, hospitals, and higher education.

Dual-radio mode: 2.4 GHz (2×2 MIMO) + 5 GHz (2×2 MIMO), achieving rates of up to 575 Mbps and 2.4 Gbps, respectively, and 2.975 Gbps for the device.

• Uplink: 1 x GE; downlink: 1 x GE.
• Various installation modes for easy deployment, including wall-mounting and plate-mounting.
• Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.
• USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
• Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP.
• Supports the Fat, Fit, and Cloud three working modes
• Feature Descriptions Wi-Fi 6 (802.11ax) standard

As the latest generation Wi-Fi standards of IEEE 802.11, 802.11ax improves user experience in high-density access scenarios and supports 2.4 GHz and 5 GHz frequency bands.

• Integrated fixed device Y
• First supported version V200R021C01
• Installation Type Desk, Wall, Ceiling, Junction Box
• Dimensions without packaging (H x W x D) 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
• Dimensions with packaging (H x W x D) 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
• Weight without packaging 0.320 kg (0.705 lb)
• Weight with packaging 0.542 kg (1.195 lb)
• CPU 2-core, 1.0 GHz
• Memory DDR3L: 512 MB
• Storage NAND Flash 256 MB
• Console port BLE console
• Maximum power consumption 12
• Maximum heat dissipation 41
• Power supply mode DC adapter, PoE
• Rated input voltage 12 V
• Input voltage range 12±10% PoE: 802.3at/af
• Service port surge protection PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
• Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
• Long-term operating temperature 0°C to 40°C (32°F to 104°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
• Storage temperature –40°C to +70°C (–40°F to +158°F)
• Long-term operating relative humidity 5% RH to 95% RH
• Long-term operating altitude –60 m to +5000 m (–196.85 ft to +16404.20 ft)
• Atmospheric pressure 53kPa – 106kPa ETSI 300 019-2-3
• Ground floating ground
• USB USB 2.0 (supporting 5 W power supply)
• BLE BLE5.0
• Radio number 2
• Operating frequency band 2.4GHz,5GHz
• MIMO spatial streams Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
• Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
• Radio interface Built-in smart antennas
• Antenna gain 2.4G: 2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi
• Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm
• 3G/LTE filter (ACC) Not supported
• MTBF 69.7
• MTTR 0.5
• Frequency stability +/-20
• 3at power supply description No function is limited.
• 3af power supply description The USB function is unavailable.
• DC power supply description No function is limited.
