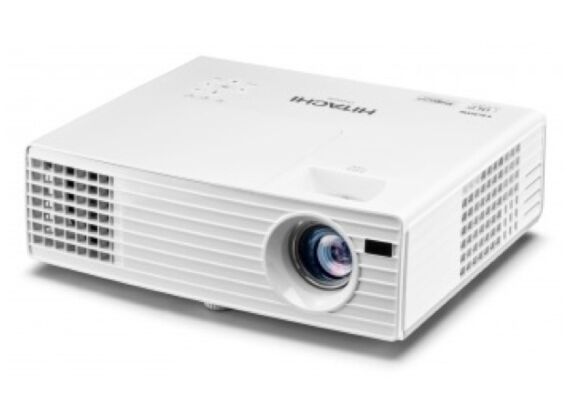

Hitachi CP-DX300 Projector

OPTICAL

Panel                                                      0.55" (1.4cm) DMD x 1
Resolution                                             XGA (1024x768)
Brightness                                             3000 ANSI Lumens (Normal Mode)/2600 ANSI Lumens (Eco Mode)
Contrast Ratio                                      2500:1
Lens                                                        Manual focus, Manual zoom x 1.1
Lamp Wattage                                     196W UHP
Lamp Life                                              4500 hours (Normal Mode)/6000 hours (Eco Mode)*
Diagonal Display Size                           30~300" (76~762cm)
Number Of Colours                             1.07 billion colours
Keystone                                               11:-1 upward shift, fixed
Focus Distance                                      1.0m (Tele) ~ 8.0m (Wide)**
Distance To Width Ratio                     1.86 (Wide), 2.04 (Tele)

COMPATIBILITY

Computer Compatibility                    IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA (compressed), MAC 16"
Composite/S-Video                            NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
Component Video                                               525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 1125p(1080p@50/60), 750p(720p@50/60)
HDMI Video                                          525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
3D (Computer)                                     640x480@60Hz, 800x600, 1024x768, 1280x800@60/120Hz
3D (HDMI)                                             (a) HQFS 3D(480i@60Hz), (b) HDMI 1.4a mandatory Frame Packing (1080p@23.98/24Hz, 720p@50/60Hz) Side by Side Horizontal (1080i@50/60Hz) Top and Bottom (720p@50/60Hz, 1080p@23.97/24Hz)
Plug & Play                                            DDC2B

FEATURES

Speaker                                                 2W x 1 (mono)
Basic Functions                                     Freeze, Magnifying, Blank, Auto signal search, Auto eco mode
Picture Adjustments                           Aspect selection (Auto/real/4:3/16:9), Mirror reverse image, Up-side down image, Progressive scan, Overscan
Digital Keystone Correction              Vertical ±30° (XGA@60Hz)
Advanced Features                             3D ready, Preset mode (bright, presentation, sRGB, cinema, game, user), Closed Caption (for NTSC), Frame lock, Wall colour (off, light yellow, light green, blue, blackboard, pink), HDMI interface is 3D capable (provided source is sending a 3D signal)
Power On & Off                                   Auto off
Security Systems                                 Security bar, Password lock, Key lock, Kensington slot, Serial number displayed on menu
OSD Languages                                     English, French, German, Spanish, Italian, Japanese, Traditional Chinese, Korean, Swedish, Russian, Polish, Turkey, Arabian, Czech, Hungarian, Greek, Thai, Portuguese (Brazil), Indonesian, Vietnamese, Hindi

CONNECTORS

Digital Input: 1 x HDMI (HDCP compatible)
Computer Input: 15pin Mini-Dsub x 2
Monitor Output: 1 x 15-pin Mini D-sub
Video Input:
2 x 15-pin Mini D-sub (shared with analogue Computer In 1 and analogue Computer In 2)
1 x RCA for composite
1 x S-Video
Audio Input: 1 x Stereo Mini
Audio Output: 1 x Stereo Mini
USB: 1 x USB Type B (for Firmware update)
Control: 1 x 9-pin D-Sub for RS232C Control

POWER

Power Supply: AC90-132V / AC198-264V (50/60Hz)
Power Consumption/Standby: 235W/<0.5W (AC 220-240V)

PHYSICAL

Dimensions (W X H X D):
265 x 81.5 x 223mm (excluding feet and extrusions)
Weight: <2.2Kg
Noise Level: 33dB (Normal Mode)/29dB (Eco mode)

MISCELLANEOUS

Indicator lights (lamp, temp, power), Ceiling mount image, Rear projection image, Serial number label on side

CERTIFICATION

UL60950-1/cUL, FCC Part 15 subpart B class B, CE Marking: EN61000-3-2, EN61000-3-3, EN55022, EN55024 (EMC Directive), EN60950-1 (Low voltage directive), WEEE, RoHS, ErP (lot6) compliant, TUV GS, GOST-R

ACCESSORIES SUPPLIED

Remote control with battery (HL02961), Computer cable, Power cord, User manual (CD-ROM & printed sheet)

OPTIONAL ACCESSORIES

Replacement Lamp: DT014615

WARRANTY

Projector Warranty: 3 Years
Lamp Warranty: 6 Months***

*The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all should achieve this figure. **Recommended focus distance is 1.5m (Tele) ~ 6m (Wide). *** Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated).
