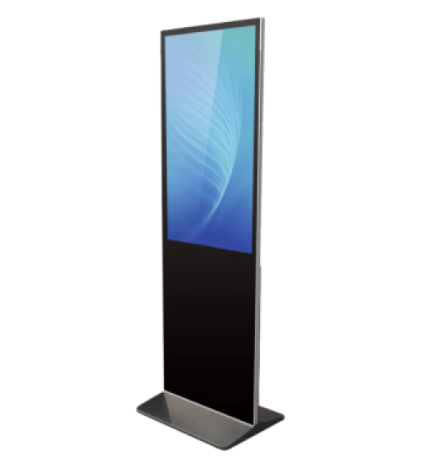

Dahua LDV55-SAI400TK 55 Floor-standing Digital Signage

Dahua LDV55-SAI400TK 55 Floor-standing Digital Signage

Display

• Model : LDV55-SAI400TK
• Backlight: LED
• Screen Size: 55''
• Aspect Ratio: 9:16
• Resolution: 2160×3840
• Display Colors: 1.07B (10 bits)
• Brightness: 350nits
• Contrast Ratio: 1000:1
• Viewing Angle(H×V) : 178°/178°
• Display Mode: Portrait
• Response Time: 8ms
• Lifespan: 30,000h

Connectivity

• Input
• RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, Audio In×1
• External Control
• IR, RJ45(LAN), USB
• Wi-Fi
• Not Support
• Speaker: 5W×2
• Smart Signage Platform: Media Publish System 3.0
• Touch: Support

Power & Environmental Conditions

• Power Supply : AC100-240V, 50/60Hz
• Consumption(Typical) : 130W
• Consumption(Standby) : Less than 0.5W
• Operating Temperature : -0℃~+40℃(32℉~104℉)
• Operating Humidity: 10%~85%

Mechanical Specification

• Dimensions : 1900mm×752mm×35.2mm
• Package: 1980mm×915mm×200mm
• Net Weight: 50kg (110.23lb)
• Gross Weight: 60kg (132.27lb)

Accessory

• Included in Box: Power cord, Pedestal
• Optional Mount Kit: NA

Internal Player

• Processor : Quad-core Cortex-A17 up to 1.6GHz
• Operating System: Android 8.1
• RAM: 2GB
• Storage: 16GB
• Material Type: Video, audio, image, time, weather, countdown, text, web page, stream media, pdf
• Video : mp4,avi,mov,asf,wmv,mkv
• A single file can upload up to 2G, and the resolution cannot exceed 4K
• Audio : mp3,WMA,wav
• A single file can upload up to 500M
• Image: jpg, jpeg, gif,bmp, png
• A single file can upload up to 30M, and the resolution cannot exceed 4K
• Documents: pdf, doc, docx, ppt, pptx, xls, xlsx, and txt. A single file can upload up to 200 MB
• Decoding Capacity : 1ch@4K or 4ch@1080P
