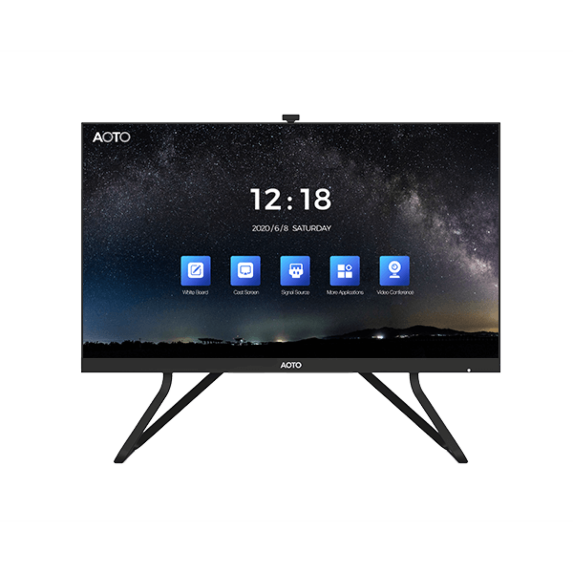

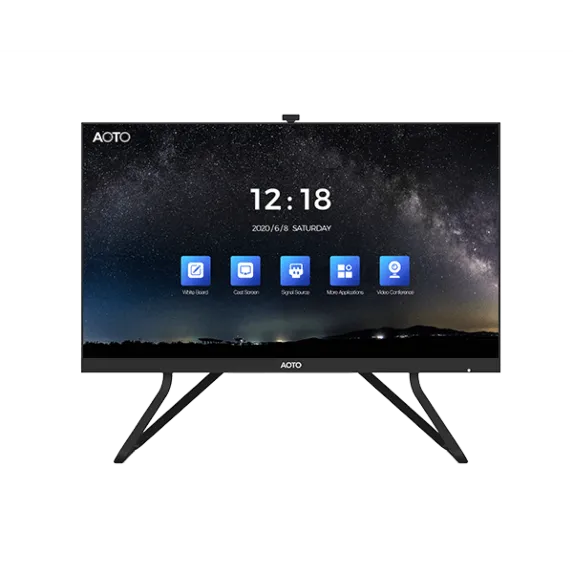

Aoto CV108S18 All-in-one 108 inch LED Display

Aoto CV108S18 All-in-one 108 inch LED Display

AOTO CV series is a new model that inherits the technical strengths of mini-LED products and develops better stability and visual performance. The slim yet tough structure makes it applicable to multiple scenarios. With a seamless and wireless connection, the product can easily deliver a UHD giant display and visual feast.

Multiple sizes for various scenarios

Various dimensions are created to meet the diversified meeting room requirements.

QR code scanning for document sharing

Meeting minutes are saved and shared via QR code scanning.

Self-R&D system

Completely self-R&D underlying control technology

Interactive touch, on-site annotation

Annotates the key information anytime, allowing you to be in your element at work.

Display in splicing contents, showcase in one screen

Support splicing screens display effect performance, compare with the same screen with diverse solutions.

Wireless Screen sharing, one-click information releasing

Real-time screen share from laptops, iPad, and mobile phones to ensure efficient communication.

CONFERENCE ROOM

AOTO's products are suitable for conference room solution, it delivers superior visual performance and outstanding clarity to make sure an efficient meeting.

CONTROL ROOM

As for the control room solution, AOTO's LED display delivers a superior visual performance and outstanding clarity to enable the effective information monitoring and interpretation.

TV STUDIO

The TV Studio LED visual application requires a high visual effect with good quality in use. AOTO, as a company that provides superior products with high standards, is able to fulfill the needs of the broadcasting industry.

Capture Vibrant Visuals

Adopting AOTO's 24-bit color depth processing technology, which benefits to display of chroma in richer ranges, presents the tiny differences among various colors. 110% NTSC wide gamut combined with pixel to pixel brightness & chroma calibration technology guarantees the consistency and accuracy of color performance for each and every batch of goods.



4 in 1 Mini LED

Through IMD packaging, Mini 4 in 1 LED offers 4 times tougher bonding pad of beads, effectively resolving the bead fragility problem of small pitch products, reducing bead falling rate, and delivering more stable and reliable products.



6000:1 Contrast Ratio

The nano-coating technology is deployed to eliminate the impact of dispersed light, guarantee soft, even and consistent light-emitting, and enhance viewing comfort.



Moiré Effect Reduction

The 4 in 1-pixel integration and ultra-small bead pitch make the display similar to the surface light source and reduce the sense of granulation of LEDs and moiré for high-quality content sharing.



40+ Global Patents

Mini 4 in 1 LED makes the chip size smaller around 100um, thus increasing the black area of the individual bead and improving the visual performance.



110% NTSC & HDR

With AOTO's own developed control system, the product offers a color range of 110% NTSC and supports HDR technology, which enhances color expression and presents more details, bringing a comprehensive viewing experience to the viewers.

180° Unparalleled Viewing Angle

A nearly 180° wide viewing angle enables the contents to be seen in most areas and ensures perfect viewing in any position in front of the screen.

Eye Protection

The radiation luminosity under 460nm is 0.008492W/²/nm, much lower than the hazard-free standard of 100W/²/nm. Tested at an exemption level, the product can help protect the eyes.

6-direction Flatness Adjustment

The six-direction adjustment technology ensures no apparent segment gap or spacing among the screens, resolving the evenness and splicing problem of small pitch screens in an all-around way.



38mm & 5kg

Featuring a light and thin design, the cabinet is 38 mm thick and weighs 5 kg, saving transportation cost and installation cost, and delivering more attractive screens after installation.

20% Energy-Saving

The common cathode technology, ultra-low voltage power supply, and dynamic energy conservation technologies are adopted to reduce power consumption by 20%. Highly energy-saving and improves heat dissipation.

Seamless Connection

No wires can be spotted among cabinets behind the screen, keeping the screen intact and presenting a neater and more attractive look.

Safe and Reliable

Meeting the requirements of electromagnetic compatibility and fire prevention, the raw material and circuit design are highly safe and stable.

Key Features of Aoto CV108 108" 1080p Mini 4-in-1 All-in-One LED Display

• Specification size: 108"
• Pixel Pitch:1.875mm
• Brightness: 100-600 nits
• Viewing Angle: Horizontal: 170°±8°;Vertical: 170°±8°
• Colour Processing Depth: 24 bit
• Refresh Rate: 1920Hz
• Resolution: 1920 x 1080
• Type Of Led: SMD1515
• Pixel Density: 284,444 pixels/m²
• Contrast Ratio: 3000:1
• Pixel Composition: 1R 1G 1B
• Signal Input: HDMI
• Colour: Black
• Overall size: 2414 x 1472 x 38
• Weight (Wall-mounting): 115kg
• Maximum Power: 1250W
• Average Power: 480W
• Input Voltage: AC100V to AC240V，50 or 60Hz
• IP Grade: IP30
• Maintenance: Front Access
• Lifespan: 50,000 Hours
• Operating Temperature: -10°C - 40°C
• Operating Humidity: 10% - 80% RH
•
