ViewSonic IFP5550-3

Out of stock
SKU
IFP5550-3
ViewSonic
Quick Overview
  • Intuitive Interactive Interface and Eye-care Certified Display
  • Synchronous Writing Performance with Dual Pens
  • Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
  • Native Whiteboarding Tool with built-in myViewBoard® App
  • Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App
AED 60,968

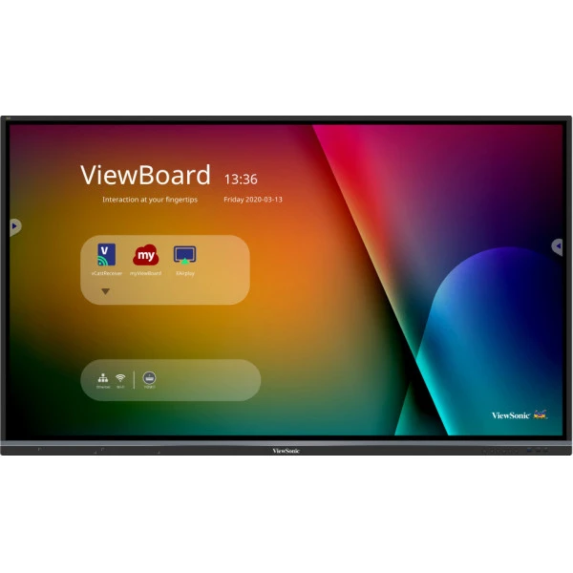

ViewSonic IFP5550-3

OVERVIEW

For teachers in the modern classroom, the ViewBoard® IFP50 series has the most intuitive interactive interface. It keeps continuous interaction within the first vision area and keeps everything within comfortable reach. Additionally, it is an eye-care certified display with low blue light and flicker-free at all brightness levels. The ViewBoard® IFP50 series further stands out with synchronous writing performance. You can write smoothly, with the pen that serves as an extension of your fingertips, and simultaneously with the equipped dual pens of different colors and thicknesses. The native built-in whiteboarding tool, myViewBoard®, further helps visualize your ideas with ease. The ViewBoard® IFP50 series is further complimented by wireless content sharing. Students can share their screens to the ViewBoard and vice versa with the built-in ViewBoard® Cast app. It is not limited to one-on-one presentation either. Teachers can advance to do group activities with the 4-way split-screen display. Whether you’ve experienced good or lackluster classroom interaction in the digital whiteboarding world, the ViewBoard® IFP50 series will now allow you to work effortlessly in the classroom.

UFT Technology

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.
*Image shown is for illustration purposes only. Actual product may vary.



Full Native Performance on ViewBoard OS

Built-in myViewBoard® digital whiteboard software to collaborate on the go.


4-way Split Screen

4-way split-screen content sharing with built-in ViewBoard® Cast software.

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

Stereo Sound

2.1 Stereo sound with a built-in subwoofer.

Faster Internet

LAN sharing with slot-in PC provides a faster, more powerful internet connection.


Object Recognition and Windows Ink Compatible

Make annotations, write and draw on the whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.


Remote Control

Built-in RS232 port and vController software for remote control.

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).


Web Camera

Top-mounted 1080p web camera (Optional).


Display

SpecificationDetails
Panel Size55"
Panel TypeTFT LCD Module with DLED Backlight
Display Area (mm)1209.6 (H) x 680.4 (V) (54.64” diagonal)
Aspect Ratio16:9
ResolutionUHD 3840x2160 (Pixels)
Colors1.07B colors (10-bit)
Brightness350 nits (typ.)
Contrast Ratio5000:1 (DCR)
Response Time8ms
Viewing AnglesH = 178, V = 178 (typ.)
Backlight Life30,000 Hours (Min)
Surface TreatmentHardness: 9H, Anti-glare coating
BezelSlim
OrientationLandscape

Platform

SpecificationDetails
ProcessorARM Cortex-A73 ×2 + Cortex-A53 ×2 1.5GHz
RAM3GB DDR4
Storage32GB

Touch

SpecificationDetails
Type/TechIR Recognition
Touch Resolution32767 x 32767
Touch Points20 points touch, 10 points writing

Input

SpecificationDetails
HDMI2.0 x3 (3840x2160 @60Hz)
RGB / VGAx1
Audiox1 (PC audio in)
RS232x1
OPSx1 PC Slot (proprietary)

Output

SpecificationDetails
Audiox1 (Earphone out)
SPDIF1 (optical)

LAN

SpecificationDetails
RJ45x1

USB

SpecificationDetails
USB 2.0 (Type A)Front x2, Rear x1 (SmartPort™ for all)
USB 3.0 (Type A)Front x1, Rear x3 (SmartPort™ for Rear x3)
Type Bx2, for touch

Speakers

SpecificationDetails
Speakers10W x2 + 15W x1 subwoofer

Top Camera Plate

SpecificationDetails
Camera PlateYes

Compatibility

SpecificationDetails
HDMI3840x2160

Embedded OS

SpecificationDetails
OSAndroid 8

Bundle Software

SpecificationDetails
Basic Annotation SoftwaremyViewBoard
Pro Annotation SoftwaremyViewBoard for Windows (Embedded in Windows Slot-in PC)

Special Features

SpecificationDetails
All-in-one USB portFront “SmartPort™ USB” to all channels
Simple LAN sharing10M/100M for Android, 10M/100M/1000M for slot-in PC

Power

SpecificationDetails
Voltage100-240VAC ±10% Wide Range
ConsumptionOn: 80W (typ.), Off: <0.5W

Ergonomics

SpecificationDetails
Wall Mount (VESA®)400 x 200

Operating Conditions

SpecificationDetails
Temperature (ºC)0°C to 40°C
Humidity10% ~ 90% RH non-condensing

Dimensions (W x H x D)

SpecificationDetails
Physical (inch / mm)49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm
Packaging (inch / mm)56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm

Weight

SpecificationDetails
Net (lb / kg)58.2 lb / 26.4 kg
Gross (lb / kg)78.3 lb / 35.5 kg

Regulations

Certification
cTUVus, FCC, ES8, EPEAT, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP, EAC, UKrSEPRO, RCM, BSMI

Package Contents

ItemQuantity
Power cable (3 meters)VSA x1, VSEx2, VSIx4
Remote control1
USB cable (3 meters)1
Touching pen2
Quick Start Guide1
RS232 adapter1
Clamp5
Plate1
Screw8
HDMI cable (3M)1

Compatible Slot-in PC

Compatible Models
VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series



More Information
SKUIFP5550-3
BrandsViewSonic
Screen Size55 Inch
Native Resolution4K UHD (3840 X 2160)
Aspect Ratio16:9
ColorBlack
