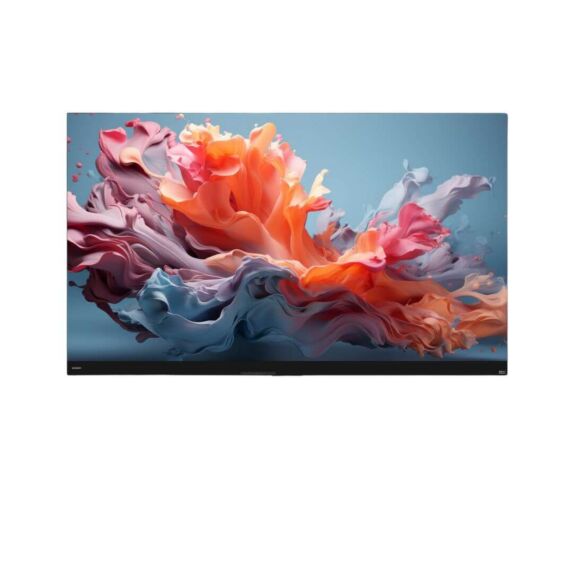

Skyworth 136-Inch P1.56 All-in-One COB LED Display Screen 2K Non-touch

Skyworth LED all-in-one display is a commercial high-end LED product specially developed for com- mercial scenarios. 135 inch SCOB "dark screen", panoramic sound, dual band WiFi, 4GB+128GB ultra large memory and other configurations. The versatile desktop, small dimensional broadcast control, wireless screen casting, welcome screen and other software systems can fully meet the needs of com- mercial office meetings, exhibitions, viewing and entertainment scenarios. The whole machine adopts an immersive patented appearance design, which is simple and practical. It has two forms: wallpaper TV and mobile stand, which are easy to install and solve the problem o f large screen TV going upstairs and user installation.

SCOB “Dark Screen”

The entire display is built with Skyworth’s self-developed SCOB dark field screen, delivering exceptional brightness and deep, uniform ink-black levels. It features 8.29 million pixel-level light controls with a ≤5nm margin of error in light purity, ensuring unmatched visual precision.

AI Picture Engine

Skyworth’s proprietary AI Picture Engine brings next-generation image calibration and processing. It continuously optimizes visuals in real time, whether you’re viewing cable TV or streaming online content, guaranteeing always-enhanced picture quality.

SKYSound Audio System

With independent Hi-Fi speakers and 5.8GHz wireless audio transmission, the SKYSound system provides panoramic sound far beyond traditional TVs and standard LED displays. Simple TV remote operation makes immersive audio effortless.

Theater-Caliber Presence

In collaboration with Dolby Laboratories, Skyworth integrates dedicated HDR calibration for lifelike visuals, paired with 360° Surround Sound for a cinematic, palpable presence.

Super Screen Mirroring

Equipped with dual independent WiFi modules, the system ensures rock-solid wireless projection with zero lag. It supports multi-platform compatibility, enabling seamless screen sharing anytime, anywhere.

Versatile Desktop

Personalize your experience with a customizable interface. Effortlessly adjust wallpapers, app cards, and navigation bars, or upload your own backgrounds via mobile to create branded corporate themes.

• Pixel-by-Pixel Brightness/Color Correction: Supported
• Brightness: 600 cd/m² (adjustable)
• Color Temperature: 9300K ± 500K (adjustable)
• Contrast Ratio: 10,000:1
• Viewing Angle: 160° (H) / 160° (V) ±10°
• Brightness Uniformity: ≥98%
• Optimal Viewing Distance:
• KC352K / KC354K: 4–30 m
• KC622K / KC624K: 5–30 m
• Refresh Rate: 3840 Hz
• Flash Calibration Storage: Supported
• Gray Scale: 14-bit (KC352K / KC354K) | 16-bit (KC622K / KC624K)

System & Connectivity

• Operating System: Android 11 / Coocaa OS 10
• WiFi: Dual-band 2.4G / 5G × 2
• Bluetooth: 5.1
• Far-field Voice: 4-array microphone
• Remote Control: Bluetooth voice remote
• Signal Input: HDMI / AV-IN / RF
• Brightness Adjustment: Supported

Audio

• Built-in Speakers: 2 × 15W
• SKYSound Technology: Enhanced Hi-Fi sound

Protection

• Front Protection: IP54
• Back Protection: IP53
