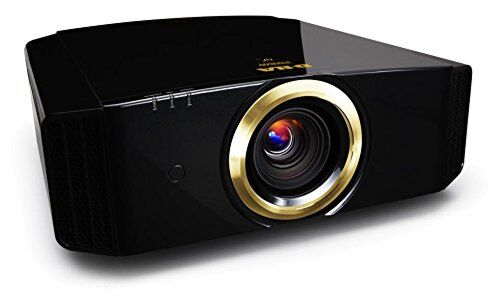

JVC DLA-RS400U Reference Series 4K Projector

0 5 5
| 1 Review(s) | Add Your Review

1 reviews

In stock

Quick Overview

  • 1700 Lumens with High Power Lamp (PK-L2615U)—Upgraded for 2016

  • Three 1920x1080(x3) 0.7-inch D-ILA devices

  • e-shift4 4K Precision 3840 X 2160 Projected Image—Upgraded for 2016

  • Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs—Upgraded for 2016

  • IMPROVED - Multi Pixel Control (MPC) with Auto Mode for ease of use—Upgraded for 2016
    MPC works with 4K60P (up to 4:4:4) signals

  • HDR (High Dynamic Range) Compatible —NEW for 2016

  • Motion Enhance (2D, 3D, 4K) with Upgraded Clear Motion Drive—Upgraded for 2016

  • 3D Enabled (Active Shutter Method)

    • Accepts Frame Sequential, Side-by-Side, and Top-Bottom

    • 3D Anamorphic Capable

    • 3D Crosstalk Cancellation

    • 3D Parallax Adjustment

    • Optional Active 3D Glasses (PK-AG3G) and RF Emitter (PK-EM2G)

  • Clear Black Signal Processing

  • Native contrast ratio: 40,000:1

  • Intelligent Lens Aperture increases dynamic contrast ratio to 400,000:1


The JVC DLA-RS400 is the most affordable Custom Install D-ILA 4k projector. It delivers stunning picture detail and
an unprecedented value thanks to JVC's exclusive 4K e-shift4 technology. It accepts native 4K 60P (4:4:4) content
through Full Speed 18Gbps HDMI/HDCP 2.2 compatible inputs and up-converts existing 1080P sources to 4K precision. Three
discrete D-ILA devices produce a stable image with no flicker and class leading 40,000:1 Native Contrast Ratio for peak
whites and deep blacks. For 2016, JVC projectors include HDR (High Dynamic Range) content compatibility and an improved
Clear Motion Drive for unmatched picture quality, as well as a newly developed high power lamp that provides 1700
lumens: the highest in-class brightness.

  • Darkness and lightness correction
  • Lens memory function memorizes 5 positions for focus, zoom and shift.
    Maintains constant height for 2.35, 1.85, 1.78 on same screen.
  • 117 memory positions on Screen Adjustment Mode
  • Convergence Correction — 1/16th pixel increments with 2 memory positions
  • Simplified 6-Axis Color Management System —NEW for 2016
  • Manual Gamma Control included with JVC Calibration Software 6—NEW for 2016
  • Control4 SDDP (Simple Device Discovery Protocol)—NEW for 2016
  • LAN connection for system control and firmware updates
  • Remote control via LAN, RS-232C, IR
  • 12V Screen Trigger Output
  • V: 80%/H: 34% motorized lens shift
  • 1.4:1 to 2.8:1 lens throw
  • 2 year warranty


Device 0.7 inch Full HD D-ILA (1920 X 1080) X3
4K e-shift4 Technology Yes
Resolution 3840 X 2160 *1
Lens 2X Zoom, Motorized Focus, f=21.4 to 42.8mm/F3.2-F4
Lens Shift +/- 80% Vertical and +/- 34% Horizontal (Motorized)
Projection Display Size 60 inch-200 inch (diagonal)
Light Source Lamp NSH 265W (lamp life approx. 4,500 hours when lamp is in Low mode)
Brightness 1,700 Lumens *2
Contrast Ratio Dynamic: 400,000:1
Native: 40,000:1
Input Terminal HDMI X2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/ HDR)
Output Terminals Trigger (DC12V, 100mA), 3D Syncro (Mini DIN 3 pin)
Control Terminals RS232C (D-sub 9 pin), LAN (RJ45)
Video Input Signal Format 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840x2160p 60/50/24, 4096x2160p 24 *3
3D Format Frame Packing: 720p 60/50, 1080p 24, 1080i 60/50
Side-by-Side (half): 720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom: 720p 60/50 1080p 24
Power Consumption TBA
Fan Noise 21dB (When the lamp is in Low mode)
Power Requirement AC100V-240V, 50/60Hz
Dimensions (W x H x D) 17 7/8" x 7" x 18 1/2"
Weight (net) 34lbs

Additional Information

Manufacturer JVC
Projector Brightness ( Lumens) 1700
Projector Resolution 4K (3840 X 2160)
Lamp Life 4000 Hours
Projector Interface Wireless Network
Aspect Ratio No
Connectivity Type No
Color Black
Warranty 1 Year
